Dipole Antenna and Radiation Fields

In this example, we study a half-wave dipole antenna and analyze its radiation characteristics. The dipole antenna is one of the most fundamental antenna types, consisting of two conducting elements of length $L$ fed at the center by a sinusoidal excitation.

For an infinitely thin half-wave dipole, the problem can be solved analytically and the solution serves as our reference for validation [1]. In the wave-zone, the operating wavelength in free space $\lambda$ is twice the total length of the antenna ($\lambda = 2 \times 2L = 4L$). The normalized field pattern on the E-plane (xz-plane) is given by

\[E(\theta) = \left|\frac{\cos\left(\frac{\pi}{2}\cos\theta\right)}{\sin\theta}\right|\,,\]

while the pattern is isotropic on the H-plane (xy-plane).

We will model a dipole antenna with arm length $L$ and finite radius $a$, solve a driven problem at the resonant frequency $\lambda = 4L$ and extract the radiation pattern $P(\theta)$ with Palace's far-field extraction capabilities).

Problem Setup

The dipole is modeled as two thin infinitely conductive cylindrical wires with length $L = 1\text{ m}$ and radius $a = L/20 = 5\text{ cm}$, separated by a thin cylindrical gap of height $h = L/100 = 1\text{ cm}$. Given these geometrical characteristics, the operating wavelength is approximately $\lambda = 4\text{ m}$, corresponding to a frequency of $\nu = c / \lambda = 0.0749\text{ GHz}$.

The gap serves as the excitation point for the antenna. Rather than explicitly modeling the feeding circuit, we place a flat rectangular strip on the xz-plane that connects the two arms of the antenna. This strip functions as a lumped port to excite the system.

The surrounding medium is free space. In reality, electromagnetic waves would propagate freely to infinity. We model this by enclosing the antenna in a sphere of radius $r_{max} = 1.5\lambda = 6\text{ m}$ centered at the origin and applying appropriate boundary conditions to simulate the infinite domain.

The mesh is generated using Gmsh and consists of tetrahedral elements with appropriate refinement near the antenna structure. The element size increases with distance from the antenna, but is capped to ensure the wavelength is resolved by at least a few elements per wavelength. The mesh file is mesh/antenna.msh and is generated using the Julia script mesh/mesh.jl.

A visualization of the model and the resulting mesh is shown below.

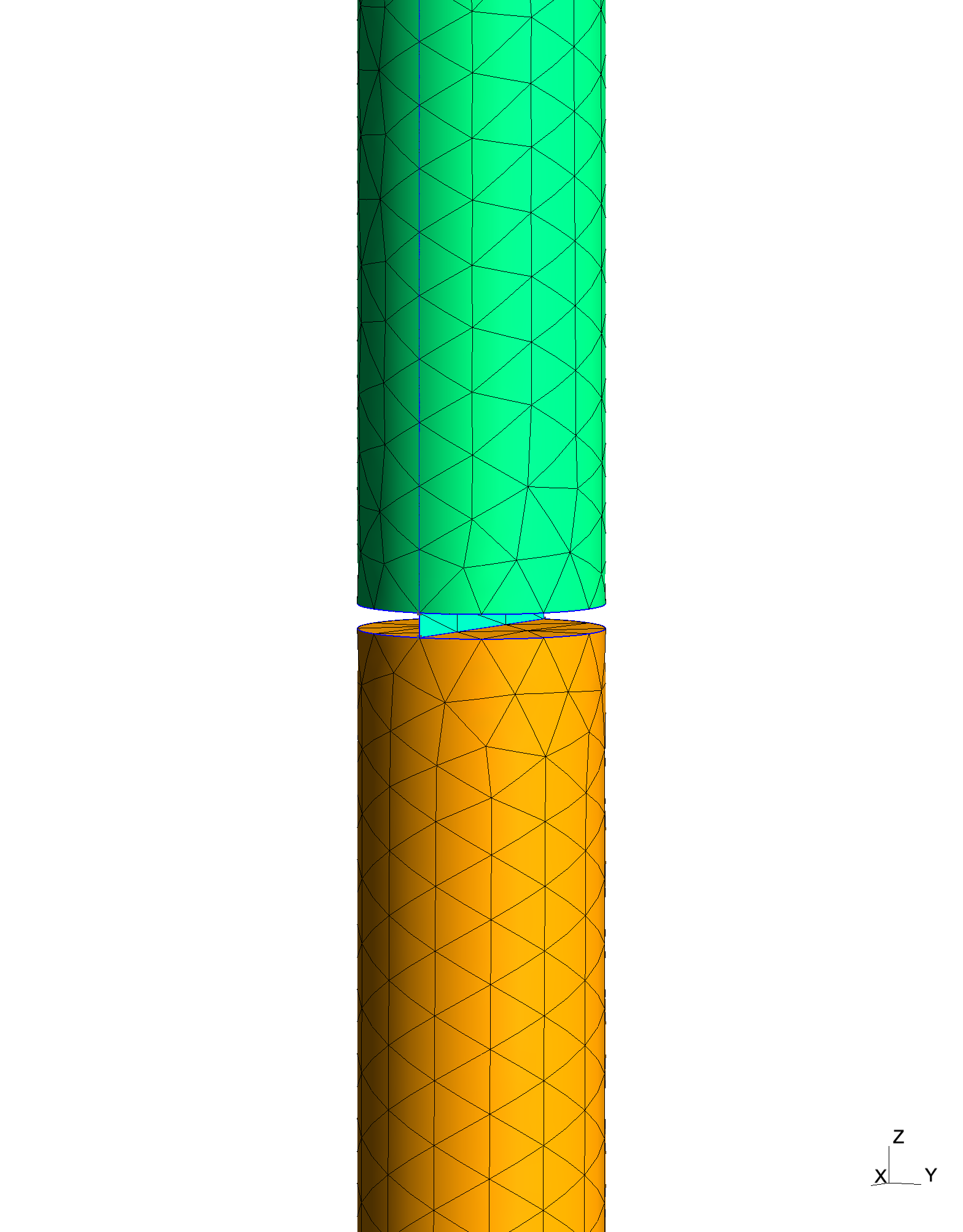

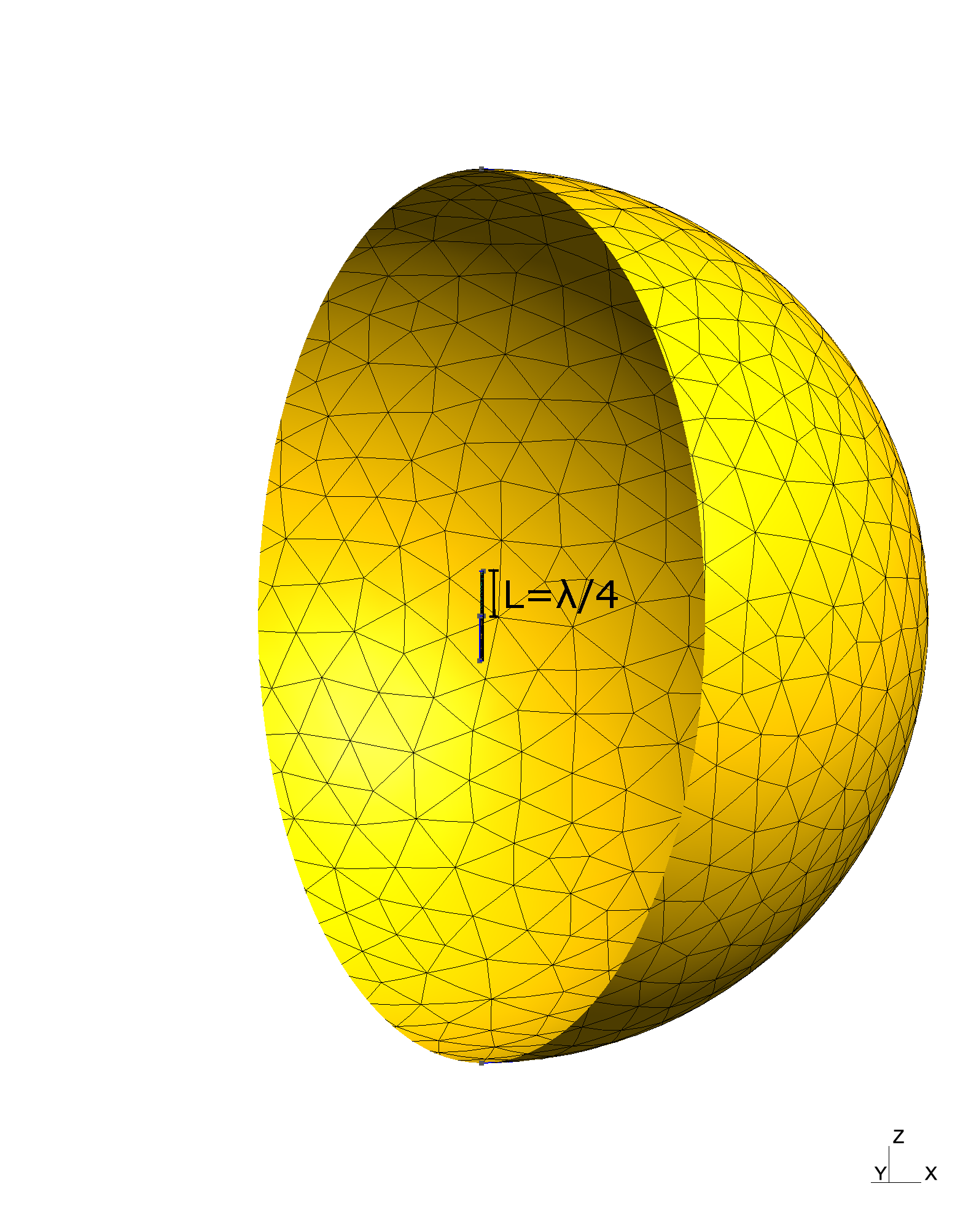

The left image shows the outer domain and the inner antenna structure. The right image provides a close-up view of the gap region, where the rectangular port is aligned on the xz-plane and spans the diameter of the cylindrical conductors.

Configuration File

The configuration file for the Palace simulation is found in antenna_halfwave_dipole.json. The simulation is performed in the frequency domain using the "Driven" solver type, operating at a single frequency of $0.0749\text{ GHz}$.

Since we assume the metallic rods are perfect conductors, we impose perfect electric conductor (PEC) boundary conditions on their surfaces. To prevent reflections of electromagnetic waves back into the computational domain, we apply "Absorbing" boundary conditions on the outer spherical boundary.

The antenna is driven using the rectangular strip as a lumped port. This port lies entirely in the xz-plane, and by setting "Direction": "+Z" and "Excitation": true, we impose an electric field aligned in the z-direction across the gap.

We use the far-field extraction feature in Palace to extract electric fields at infinity. To do so, we add a "PostProcessing" section under "Boundaries" with the same Attributes as the surface with "Absorbing" boundary conditions and we choose a positive value for "NSample". A NSample of 64800 means that the far-field sphere is uniformly discretized with resolution of one degree on the equator (to preserve the uniform distribution, the resolution changes as one moves towards the poles).

Analysis and Results

The simulation requires approximately 6 GBs of RAM and completes in a few minutes (depending on the hardware). The simulation produces a 160 MB postpro folder, which contains the electromagnetic fields that we will use to extract radiation patterns.

First, let us look at the far-field output. The postpro/antenna_halfwave_dipole folder contains a file, farfield-rE.csv, with the far-field electric fields for the all the target frequencies (in this case, only 7.49000000e-02 GHz). The first few lines of this file are:

        f (GHz),               theta (deg.),                 phi (deg.),              r*Re{E_x} (V),              r*Im{E_x} (V),              r*Re{E_y} (V),              r*Im{E_y} (V),              r*Re{E_z} (V),              r*Im{E_z} (V)
 7.49000000e-02,         0.000000000000e+00,         0.000000000000e+00,        +2.930940721527e-03,        +9.180685842121e-04,        +5.650494999979e-04,        +4.087324611257e-04,        -0.000000000000e+00,        -0.000000000000e+00
 7.49000000e-02,         3.500000000000e+01,         2.000000000000e+01,        -4.890972029095e-02,        -5.566639766008e-02,        -1.681624433898e-02,        -2.466672618017e-02,        +3.620885041116e-02,        +4.253468131010e-02
 7.49000000e-02,         3.686989764584e+01,         0.000000000000e+00,        -5.003961690433e-02,        -6.237359292749e-02,        -4.481234775960e-04,        -1.824872742813e-03,        +3.752971267825e-02,        +4.678019469562e-02

The plot_farfield.jl Julia script processes this file and produces plots polar for the E- and H- planes (xz/xy-planes) and in the 3D.

julia --project plot_farfield.jl model=antenna_halfwave_dipole file=postpro/antenna_halfwave_dipole/farfield-rE.csv

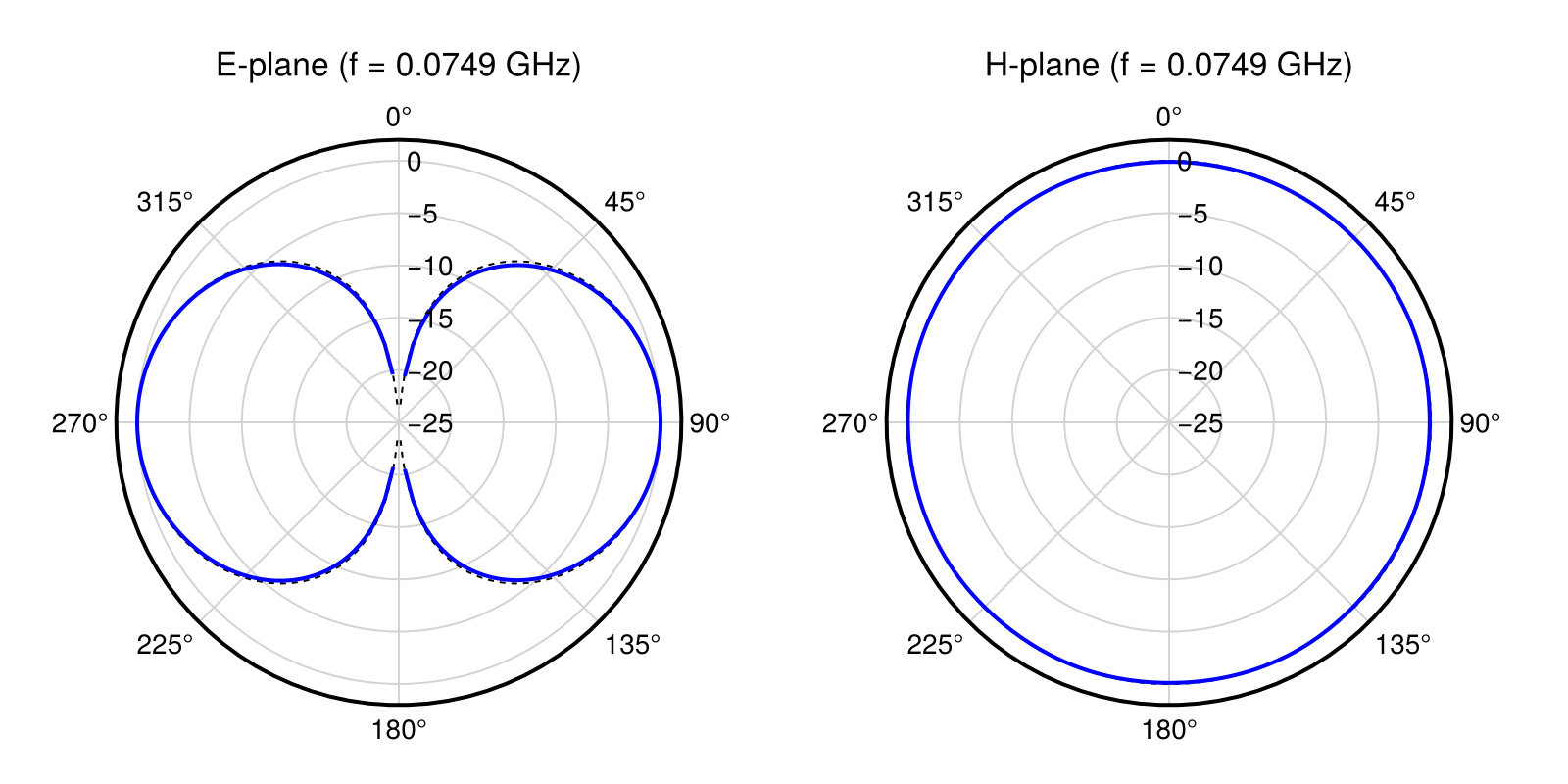

The results for the polar plot are shown below.

On the H-plane, we see the expected isotropic emission pattern for any of the extracted radii. On the E-plane, we see agreement with the characteristic figure-eight pattern of a dipole antenna, with maximum radiation perpendicular to the antenna axis and nulls approximately along the antenna axis.

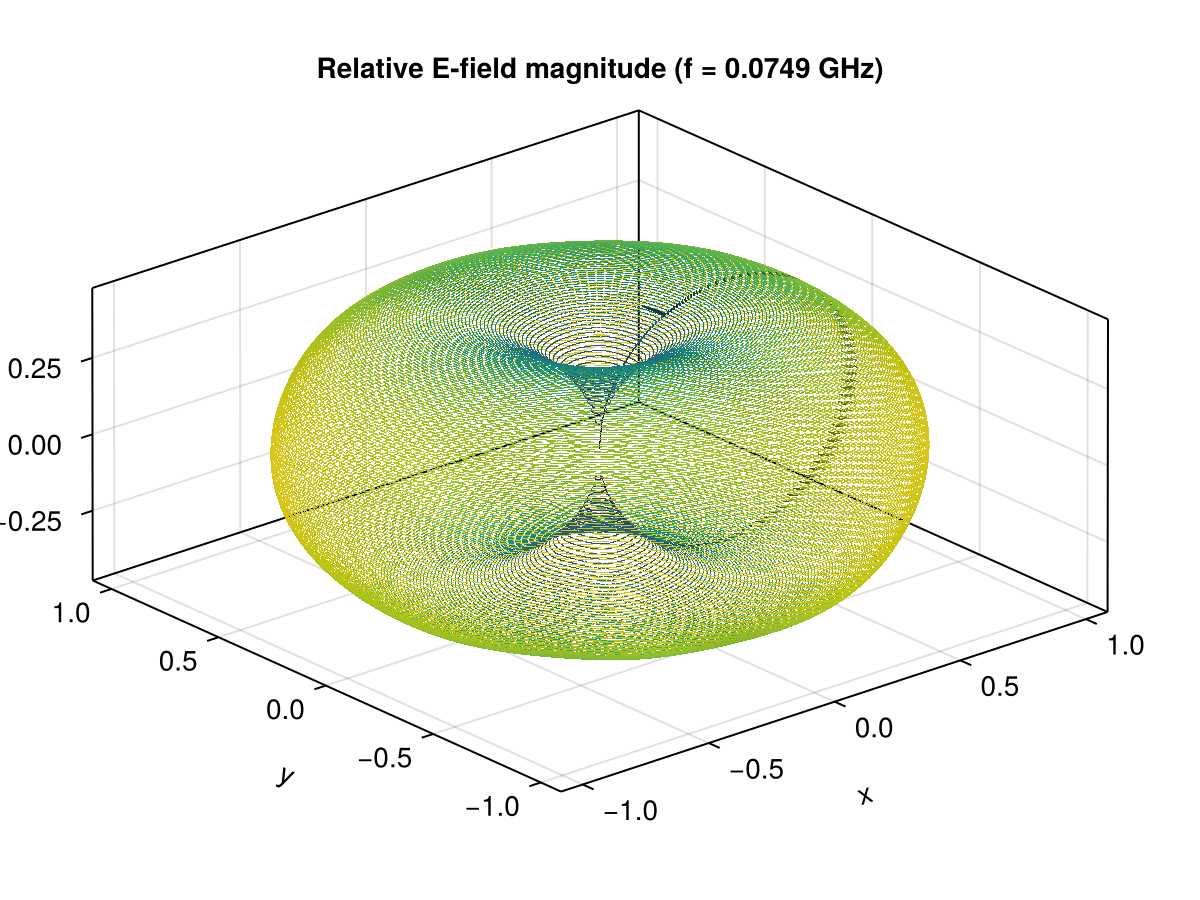

We can see the same pattern rendered in 3D as well

This plot shows the 3D relative antenna pattern representing the normalized strength of the electric field as function of the distance from the origin. Once again, we see the expected donut shape, with maximal electric field strength on the equator, and minimum along the z axis.

julia --project -e 'using Pkg; Pkg.instantiate();'

Alternative: Short Dipole Using the Electric Current Dipole Operator

As an alternative to explicitly modeling the antenna geometry with a lumped port excitation, Palace provides an electric current dipole operator that represents an infinitesimally short current-carrying wire. This approach is particularly useful for theoretical studies or when the detailed geometry of the feeding structure is not critical to the analysis.

Background

An electrical current dipole can be thought of as the limiting case of a finite wire segment carrying current $I$ over length $\Delta s$ as $\Delta s \rightarrow 0$. The strength of the source is characterized by its dipole moment $\mathbf{p} = I \, ds$, where $ds$ is the infinitesimal length [2]. The source term in Maxwell's equations becomes

\[\mathbf{J}_e^s = \mathbf{p} \, \delta(x) \delta(y) \delta(z)\,,\]

where $\delta$ represents the Dirac delta function, indicating that the source is concentrated at a single point in space.

For a z-oriented electrical current dipole (short dipole) in free space, the far-field radiation pattern in the E-plane (xz-plane) follows

\[|\mathbf{E}_\theta|^2 \propto |\sin\theta|^2\,,\]

with omnidirectional radiation in the H-plane (xy-plane). This differs from the half-wave dipole pattern shown earlier, which exhibits a characteristic $\left|\frac{\cos\left(\frac{\pi}{2}\cos\theta\right)}{\sin\theta}\right|^2$ dependence.

Configuration and Running the Example

A complete example using the current dipole operator is provided in antenna_short_dipole.json. The configuration uses a "CurrentDipole" specification in the "Domains" section:

"Domains":
{
    "Materials":
    [
        {
            "Attributes": [5, 6, 7]
        }
    ],
    "CurrentDipole": [
        {
            "Index": 1,
            "Moment": 1.0,
            "Center": [0.0, 0.0, 0.0],
            "Direction": [0, 0, 1]
        }
    ]
}

The key parameters are:

• "Index": Identifier for this current dipole source (used in postprocessing output)
• "Moment": Current dipole moment magnitude $\mathbf{p}$ in A·m
• "Center": Coordinates of the dipole center position in mesh length units
• "Direction": Direction vector of the current dipole moment (automatically normalized)

where the material attributes 5 and 6 represent the volume of the cylindrical arms while the PEC boundary condition on the surface of these arms and the lumped port in the half-wave dipole example is removed. The outer spherical boundary with "Absorbing" conditions and the far-field postprocessing setup remain the same.

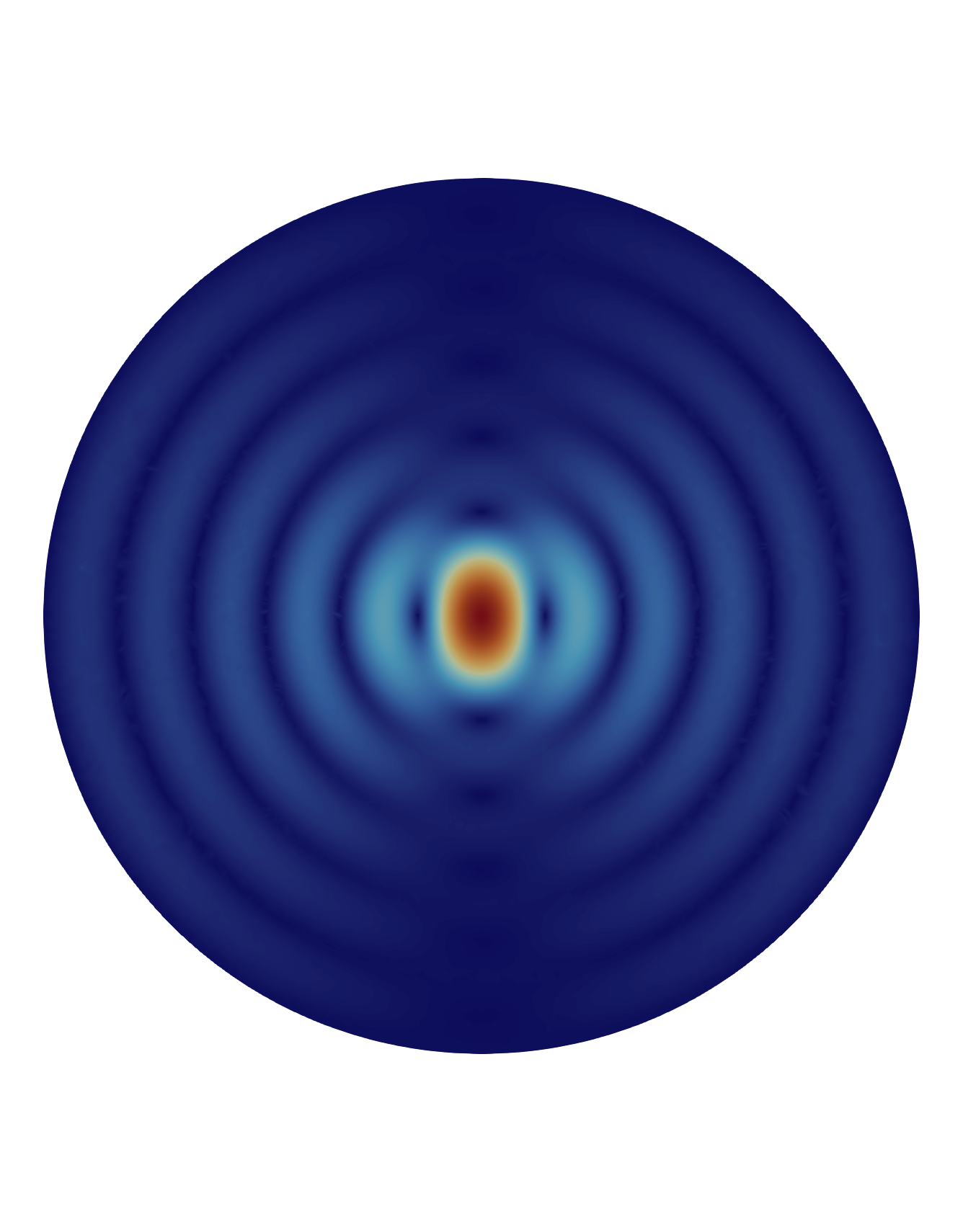

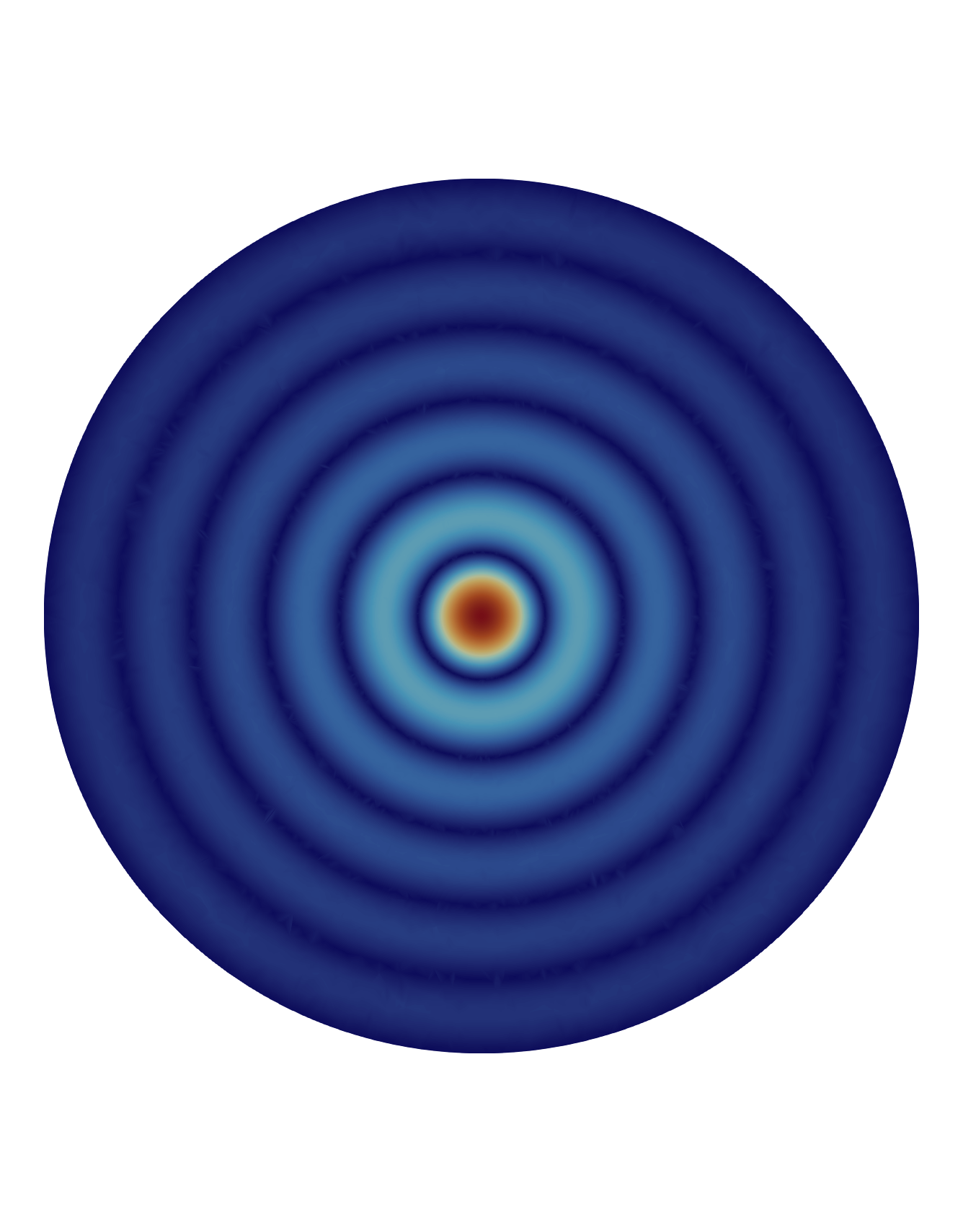

The following plots show the spatial distribution of the real part of the electric field in the yz-plane (left) and xy-plane (right), illustrating the near-field behavior of the short dipole antenna.

The far-field radiation pattern can be visualized using the same plotting script used for the half wave dipole, by specifying the short dipole model type:

julia --project plot_farfield.jl model=antenna_short_dipole file=postpro/antenna_short_dipole/farfield-rE.csv

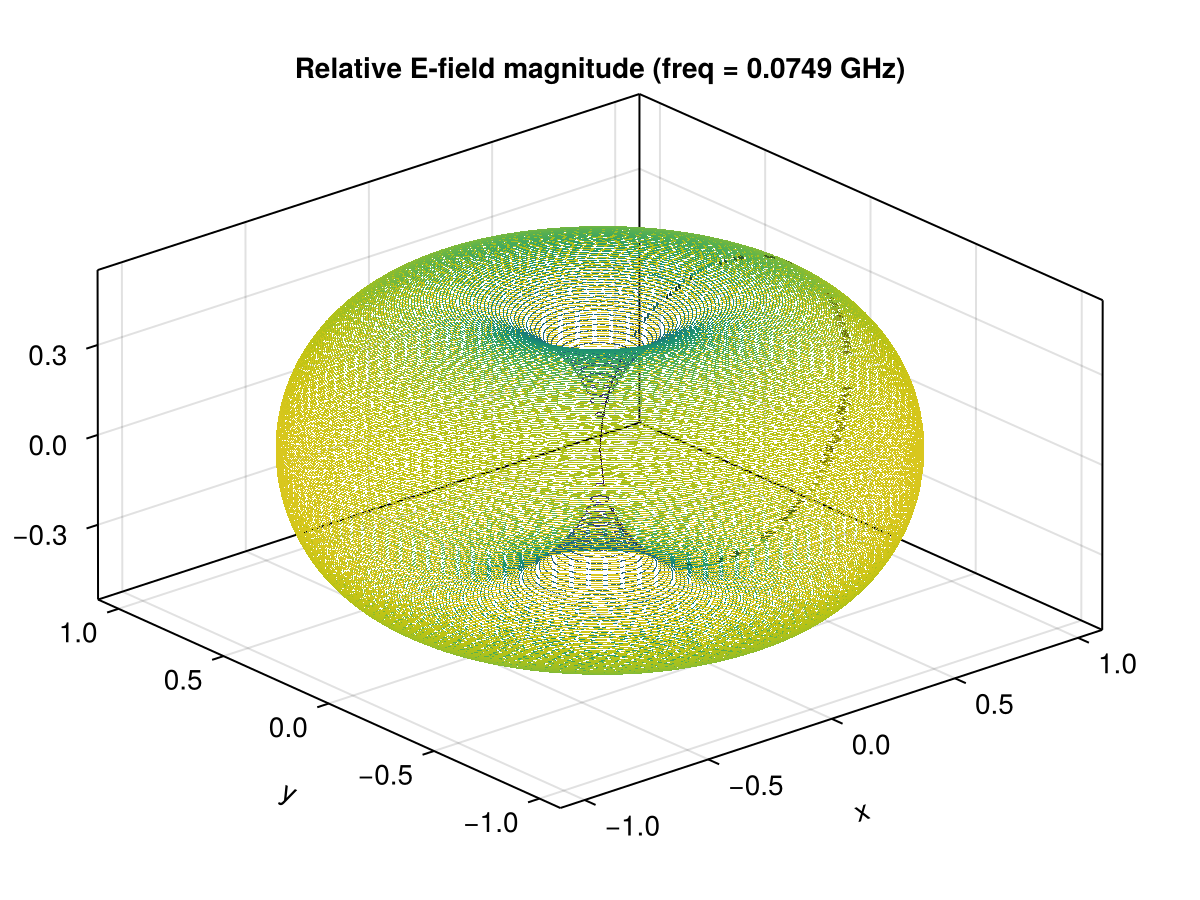

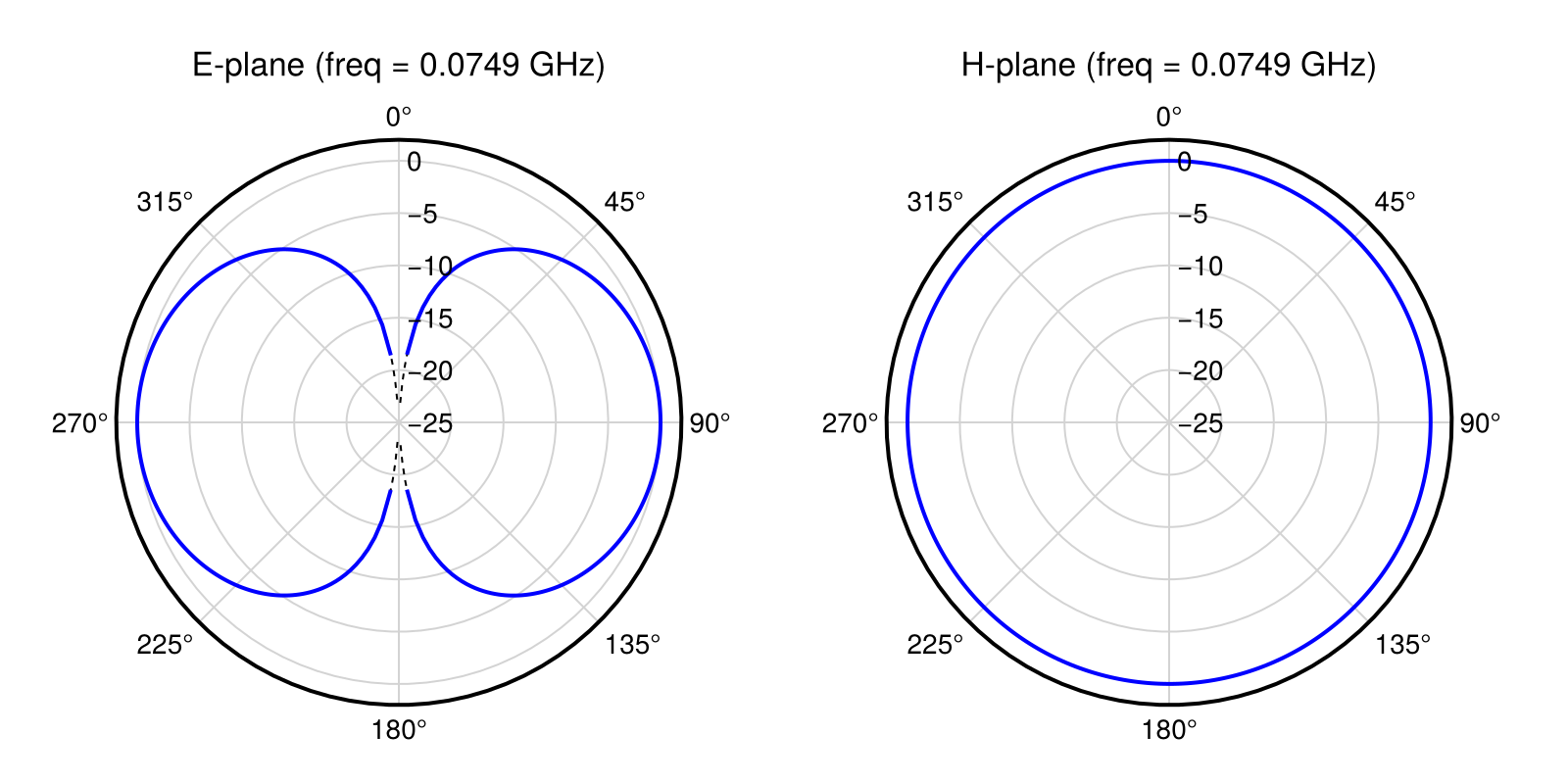

The polar plots show the theoretical radiation pattern for a short dipole: the E-plane exhibits the $|\sin\theta|^2$ dependence decaying to zero on the dipole axis (θ = 0° and 180°) and maximum radiation perpendicular to the dipole (θ = 90°), while the H-plane shows the expected omnidirectional pattern. The 3D far-field pattern is also visualized:

References

[1] Stutzman, W. L., & Thiele, G. A., Antenna Theory and Design (3rd ed.), John Wiley & Sons, 2012.

[2] Heagy, L. J., Cockett, R., Kang, S., Rosenkjaer, G. K., & Oldenburg, D. W., "Defining the Electrical Current Dipole," EM GeoSci, https://em.geosci.xyz/content/maxwell1fundamentals/dipolesourcesinhomogeneousmedia/electricdipole_definition/index.html.
