Model Context Protocol (MCP) ​

LISA supports Model Context Protocol (MCP), a popular open standard that enables developers to securely connect AI assistants to systems where data lives. Customers can connect 3rd Party and LISA hosted MCP servers within the chat UI and use the tools hosted on those servers. For example, if an MCP server is added to LISA that supports email/calendar actions then LISA customers can prompt for supported tasks. In this case, customers could request help sending calendar invites on their behalf to specific colleagues based on everyone’s availability. The LLM would automatically engage the appropriate MCP server tools and perform the necessary steps to complete the task.

Activate MCP Feature & LLM

  1. Administrators must first activate the MCP Server Connections feature on LISA’s Configuration page. When active, the MCP Connections page will appear under the Libraries menu for all LISA users. To activate, toggle MCP Server Connections to be active. Click Save Changes and then Update.
  2. Optionally, enable AWS Sessions to allow users to connect AWS credentials per chat session for use by MCP tools that support it. See AWS Sessions below.
  3. An Administrator must add an LLM to support LISA’s MCP tools capability. During model creation in Model Management, toggle Tool Calls to be active.

Add MCP Connections

Administrators and non-admins can configure MCP server connects with LISA. Non-admins can add MCP server connections for personal use only. However, Administrator can create or update MCP server connections to be available for all LISA users. The steps below demonstrate how to configure LISA with an externally hosted MCP server on the Pipedream platform. To use Pipedream MCP servers, you must create an account. This will give you access to MCP server information to use in the below steps.

  1. As an Administrator, under the Libraries menu select MCP Connections.
  2. Add at least one MCP server to LISA by clicking on Create MCP Connection button.

TIP:

Pipedream’s GitHub MCP server is straightforward to implement with LISA and does not require sharing GitHub credentials with Pipedream. With the GitHub MCP server, you can prompt the LLM about LISA or MLSpace GitHub repos hosted by AWS Labs. The server will then use its tools to find the repo in GitHub, and gather information. This information will be used by the LLM to answer your prompts.

  1. Fill out the required fields to create the MCP server connection: Name, Description, URL.
  2. Confirm that this new MCP server connection is Active. To activate, toggle Active option to be active. This is an Admin only setting that determines if an MCP server connection is generally available for users to opt into using.

TIP:

LISA’s MCP server connections can either be private to a single user, or available to all users. Private MCP server connections created by non-admins are automatically set to Active and only available to that user. Admins can choose to deactivate a user’s private MCP server connection.

  1. Click Create Connection.
  2. Click on the new MCP server connection to view all the tools available on that server.

TIP 1:

MCP server tools are opt out by default. Meaning that an MCP server’s tools are all activated for use in LISA when a new server connection is created. Each user can then choose to personally deactivate specific tools by toggling Use Tool to be inactive. This is a user specific setting.

TIP 2:

While individual tools may be active, users cannot access them unless they have opted in to use the parent MCP server connection. This is a user specific setting. See Step 8 below.

  1. Use the breadcrumbs at the top of the page to return to the MCP Connection list.
  2. To use an MCP sever, each user must opt into the MCP server connection in MCP Connections. Non-admins can only opt into Active MCP server connections. They will not see Inactive MCP servers. To opt into using an MCP server connection, set the Use Server toggle to active in the MCP Connections list.

TIP:

MCP server connections are opt in by default. Each user must individually opt in. This is a user specific setting.

  1. To confirm configuration, start a new chat session. At the bottom of the page the count of active MCP servers and tools available to this user will display.

Using MCP tools with LISA

  1. To use an MCP server’s tools, start a new chat session. Click AI Assistant at the top of the page.
  2. Select the LLM configured previously.
  3. Prompt the model to do something supported by the MCP server’s tools configured above.
  4. By default, you will be asked to confirm the execution of each tool’s planned external action. See LISA’s Autopilot Mode below for more information. You can also choose to opt out of future confirmation prompts each tool takes.

MCP Settings: Autopilot Mode, Edit, and Delete

Autopilot Mode

LISA offers optional safeguards with MCP server use. By default, Autopilot Mode is deactivated for each user. As a result, users must approve each external action that MCP tools are planning to execute on their behalf. For example, if a user prompted the model to send an email to a colleague about a follow-up meeting, the MCP tool being used will ask for confirmation before sending an email on behalf of that user. However, a user can choose to manually approve the first action that specific tool takes, and then opt in for auto-approvals for all subsequent tool actions.

When a user activates Autopilot Mode, that user will not be prompted to confirm any MCP tool actions. However, the user will see the actions being executed in the session window. Users always have the ability to manually stop MCP tools via the Stop generation button in the bottom right of the chat UI.

TIP:

Each user controls if Autopilot Mode is activated for their personal use. The setting applies to all the server connections that a user has toggled to be in use, indicated by the Use Server toggle activated.

Edit and Delete

Admins can edit and delete any MCP Server Connection. Non-admins can edit or delete MCP Server Connections that they created.

API Reference ​

The MCP Server Connections API manages MCP endpoints that users and administrators can enable in chat sessions.

Base path: /mcp-server

List MCP Server Connections ​

  • Method: GET
  • Path: /mcp-server
  • Description: Lists MCP server connections available to the caller.

Create MCP Server Connection ​

  • Method: POST
  • Path: /mcp-server
  • Description: Creates a new MCP server connection.

Get MCP Server Connection ​

  • Method: GET
  • Path: /mcp-server/{serverId}
  • Description: Retrieves a specific MCP server connection.

Path parameters:

  • serverId (string, required): MCP server identifier

Update MCP Server Connection ​

  • Method: PUT
  • Path: /mcp-server/{serverId}
  • Description: Updates an existing MCP server connection.

Path parameters:

  • serverId (string, required): MCP server identifier

Delete MCP Server Connection ​

  • Method: DELETE
  • Path: /mcp-server/{serverId}
  • Description: Deletes an MCP server connection.

Path parameters:

  • serverId (string, required): MCP server identifier

Example:

bash
curl -X GET "https://<api-gateway-domain>/<stage>/mcp-server" \
  -H "Authorization: Bearer <token>"

AWS Sessions ​

When AWS Sessions is enabled (Administration → Configuration → MCP section), users can connect their AWS credentials to individual chat sessions. This allows MCP tools to perform AWS operations on behalf of the user using their own credentials.

How it works ​

  • Per-session scope: Credentials are stored per user and per chat session. Each session has its own isolated AWS connection.
  • In-memory storage: Keys are validated and converted to short-lived session credentials stored securely in memory. Long-term credentials are never persisted.
  • MCP tool requirement: The feature only has effect when an MCP server exposes tools that leverage these credentials. For example, the MCP Workbench sample S3 tools use connected credentials to list buckets or perform other S3 operations. Without such tools, connecting credentials has no effect.
  • Session lifecycle: Credentials are discarded when the chat session ends.

Caution: Credentials with broad permissions can create, modify, or delete resources in your AWS account. Use IAM credentials with the minimum permissions required for the tools you intend to use.

Using AWS Sessions ​

  1. Ensure AWS Sessions is enabled by your Administrator (Configuration → MCP → AWS Sessions).
  2. Start or open a chat session.
  3. Open the session configuration panel (gear icon) and locate the AWS Credentials section.
  4. Enter your Access Key ID, Secret Access Key, optional Session Token, and Region.
  5. Click Connect. Your credentials are validated and converted to short-lived session credentials.
  6. Use MCP tools that support AWS credentials (e.g., S3 list buckets) within that chat session. The LLM will invoke these tools using your connected credentials.

TIP:

AWS Sessions requires MCP Server Connections to be enabled. Administrators can disable AWS Sessions independently if they do not want users connecting AWS credentials in chat.

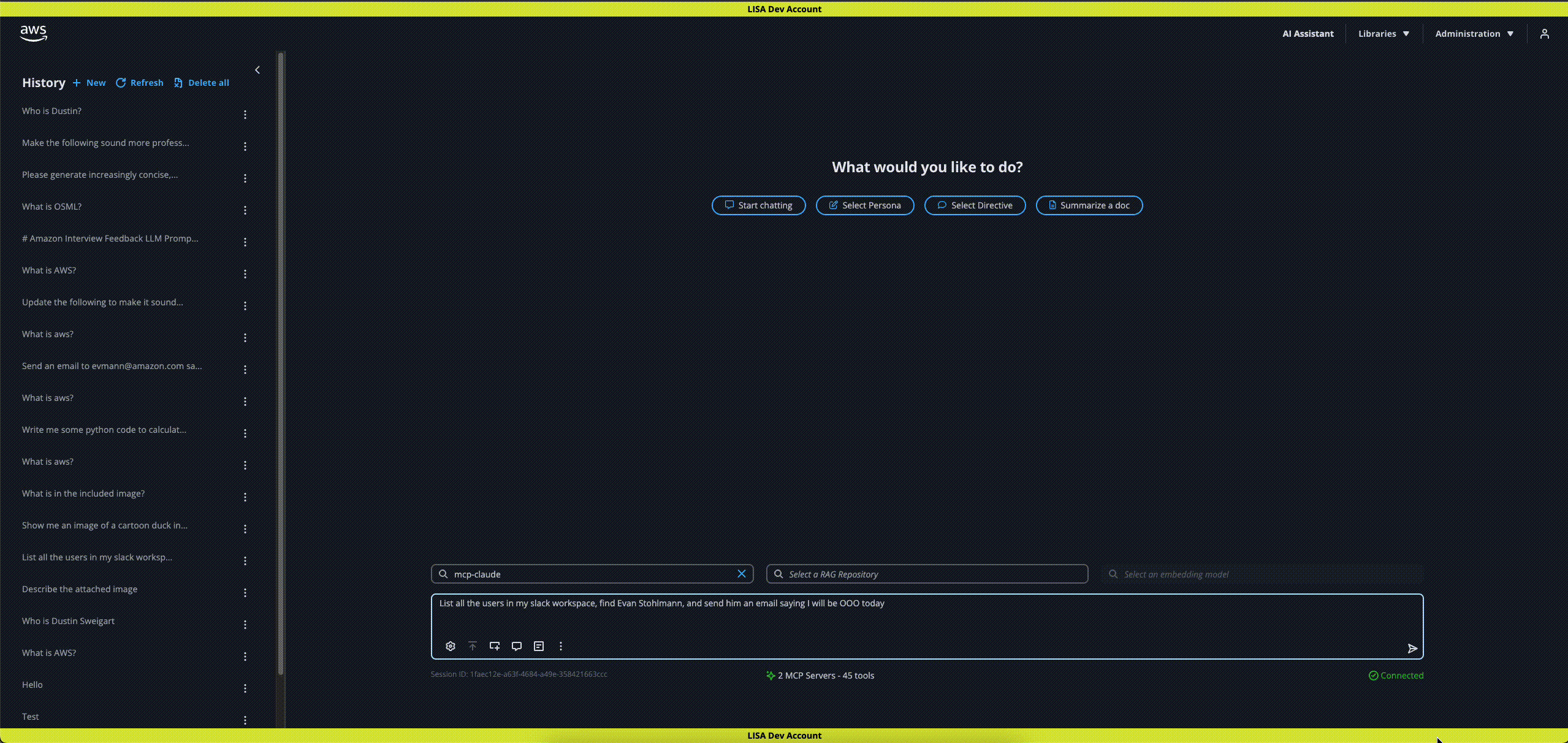

MCP Example
