Check the KNFSD proxy instance is starting correctly

The simplest way to check if each KNFSD proxy instance is starting correctly is to add the knfsd-file-cache:status tag as an AWS Console column.

AWS Console Live View

  1. In the AWS Console go to EC2 and select Instances page.

  2. Click the Preferences (⚙️) icon in the top right corner of the screen.

  3. Select knfsd-file-cache:status from the Columns list.

  4. Click the Confirm button.

  5. The knfsd-file-cache:status column will now be visible in the Instances table.

  6. Check the status of each KNFSD proxy instance. ready means the KNFSD proxy instance has successfully completed its proxy-startup.sh script.

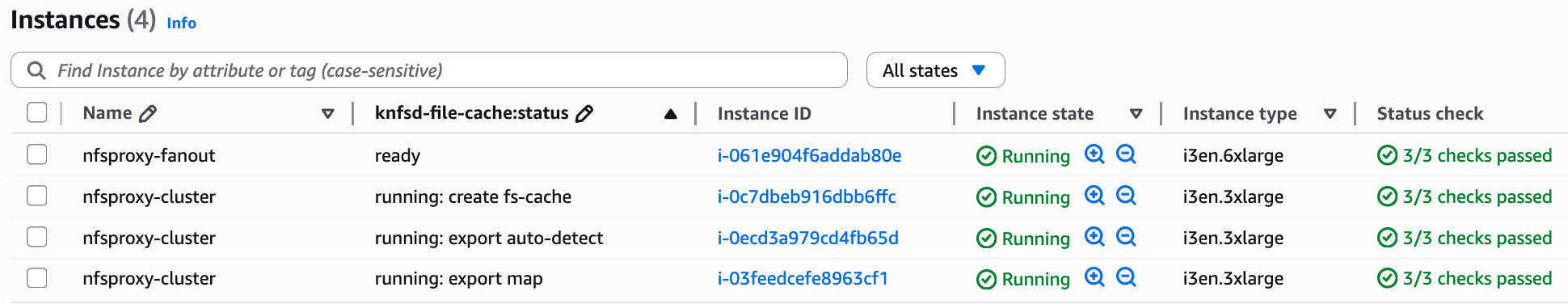

AWS Console Live View

AWS Console Output

To check if a KNFSD proxy instance is starting correctly, check the output from the System log either via AWS Console or AWS CLI.

aws ec2 get-console-output --instance-id INSTANCE_ID --latest --output text --no-cli-pager | grep "cloud-init"

You can also connect via EC2 Instance Connect/Endpoint, Session Manager, SSH or EC2 Serial Console (depending on your config) and check the status via cloud-init: cloud-init status or tail -f /var/log/cloud-init-output.log.

NOTE: For EC2 Serial Console access, you will need to set a password for root or equivalent user account within your AMI during Packer image build. For a strong security posture, this is not automated for you.

Once connected to a KNFSD proxy instance, you can execute this command to --wait until cloud-init has finished:

/usr/bin/cloud-init status
status: running

/usr/bin/cloud-init status --wait
# should return one of the following at exit:
status: done
status: error

If the status is error then check the output from cat /var/log/cloud-init-output.log for more details.

Once the proxy-startup.sh script has completed, look for either of these messages:

"INFO: Reached Proxy Startup Exit. Happy caching!"
or
"ERROR: Failed to start proxy"

AWS Console

Using the AWS Console:

  1. In the AWS Console go to EC2 and select the Auto Scaling Groups page.

  2. Select the KNFSD Auto Scaling Group.

  3. Click the Instance ID of one of the KNFSD proxy instances from the Instances list on the Instance management tab.

  4. Click on Actions, Monitor and troubleshoot, and Get system log or EC2 serial console.

  5. Search for "INFO: Reached Proxy Startup Exit. Happy caching!" or "ERROR: Failed to start proxy".

If the proxy instance is still starting, then you will need to refresh until the start up script finishes running.

AWS CLI

Retrieve the instance ID of a KNFSD proxy instance in the Auto Scaling Group.

aws ec2 describe-instances --filters "Name=tag:aws:autoscaling:groupName,Values=<var.PROXY_BASENAME>-asg" --query "Reservations[].Instances[].InstanceId[0]" --output text
# where <var.PROXY_BASENAME> is the Terraform variable for the unique basename of the KNFSD proxy cluster, default is `knfsd`, which if present, is combined
# with a random 8 alphanumeric string, and "-asg". Example: "knfsd-a1b2c3d4-asg"

If the instance is still starting up you can watch the cloud-init output by running:

aws ec2 get-console-output --instance-id INSTANCE_ID --latest --output text --no-cli-pager | grep "cloud-init"

SSH

Connect via EC2 Instance Connect/Endpoint, Session Manager, or SSH. If applicable, add a security group to the KNFSD proxy instance to allow SSH access from your IP address.

Check the cloud-init status and tail the output log.

cloud-init status
tail -f /var/log/cloud-init-output.log

CloudWatch Logs

If the Amazon CloudWatch agent is successfully running after instance startup, then the cloud-init output is stored in the /knfsd/logs/aws/cloud-init-output CloudWatch log group. Retrieve the instance ID of a KNFSD proxy instance in the Auto Scaling Group.

aws logs get-log-events --log-group-name /knfsd/logs/aws/cloud-init-output --log-stream-name INSTANCE_ID --output text --no-cli-pager

Common Startup Issues

There are four main reasons:

  1. Invalid configuration (startup failed)
  2. Security Group/NACL/Firewall blocking access (startup failed, network connectivity issue)
  3. Startup takes longer than 10 minutes (startup never finishes)
  4. AWS service endpoint unreachable (startup failed, or status reporting degraded)

Invalid configuration

If the start up shows the message "cloud-init: ERROR: Failed to start proxy" then look at the last message(s) from "cloud-init" to see what the error was.

The most likely errors are:

  • Source NFS server could not be contacted:

  • Check the EXPORT_MAP or EXPORT_HOST_AUTO_DETECT has the correct IPs or DNS names and syntax is correct.

  • If using EXPORT_HOST_AUTO_DETECT then check vers3=yes is set in /etc/nfs.conf.d/knfsd.conf for showmount to work. Ensure DISABLED_NFS_VERSIONS does not include 3.

  • If using DNS, check that the DNS names can be resolved by the KNFSD proxy instances.

  • Ensure any applicable security groups, NACLs or firewalls allow the KNFSD proxy instances to access the source server.

  • Check on-prem firewall rules allow the NFS traffic from the KNFSD proxy instances.

  • Check the AWS Site-to-Site VPN and/or AWS Direct Connect connection is working.

  • Check if traffic from the KNFSD proxy's subnet can be routed to the VPN or DX.

  • Access denied by server while mounting share. This is either a permission issue, or the share does not exist. Check source export paths specified in EXPORT_MAP.

Start up takes longer than 10 minutes

Normally 10 minutes is long enough for the KNFSD proxy to start. However if you are re-exporting a large number of exports (e.g. 1000+) this start up time may exceed 10 minutes.

In this case the best option is to split up the exports across multiple separate KNFSD proxy clusters to reduce the number of exports per KNFSD proxy cluster.

If the startup time cannot be reduced below 10 minutes, then measure how long a KNFSD proxy instance takes to start and configure HEALTHCHECK_INITIAL_DELAY_SECONDS to increase the initial grace period when starting the cluster.

The status tag is missing or stuck at "starting"

If the knfsd-file-cache:status tag never leaves starting, the proxy instance most likely cannot reach the EC2 API to tag itself. Look for this warning in the cloud-init output:

WARNING: unable to set tag "knfsd-file-cache:status", disabling status tagging for this boot

Status tagging is best-effort, so startup continues and NFS caching is unaffected. Because the tag is no longer updated, use the log based checks above instead:

  • On the instance, tail -f /var/log/cloud-init-output.log and look for INFO: Reached Proxy Startup Exit. Happy caching! or ERROR: Failed to start proxy.
  • Off the instance, use the AWS Console Output or CloudWatch Logs sections above.

See Known Issues for the full impact, including on ENABLE_STATUS_CHECK, and the remedy.

Parameters cannot be read from SSM Parameter Store

The proxy reads its entire configuration from SSM Parameter Store, so startup exits immediately if the parameters cannot be read:

ERROR: failed to read parameters from SSM Parameter Store path /knfsd/knfsd-a1b2c3d4

or

ERROR: no parameters found under /knfsd/knfsd-a1b2c3d4

The first indicates the SSM API could not be reached or access was denied. The second indicates the call succeeded but the path holds no parameters. Both messages are followed by a line naming the checks to perform. See Known Issues for details.
