GitLab CI Pipeline

NOTE: You do not need to follow these instructions to create the image & deploy the knfsd-file-cache solution on AWS.

A .gitlab-ci-aws.yml file is provided in the root of this repository to enable automated, continuous integration of the KNFSD File Cache solution on AWS. This pipeline implements industry best practices for code quality, security scanning, and multi-architecture builds.

This pipeline is designed to run on a self-hosted GitLab deployment. It should be used in conjunction with the pre-commit system to ensure that the code is properly formatted and linted before being committed to the repository.

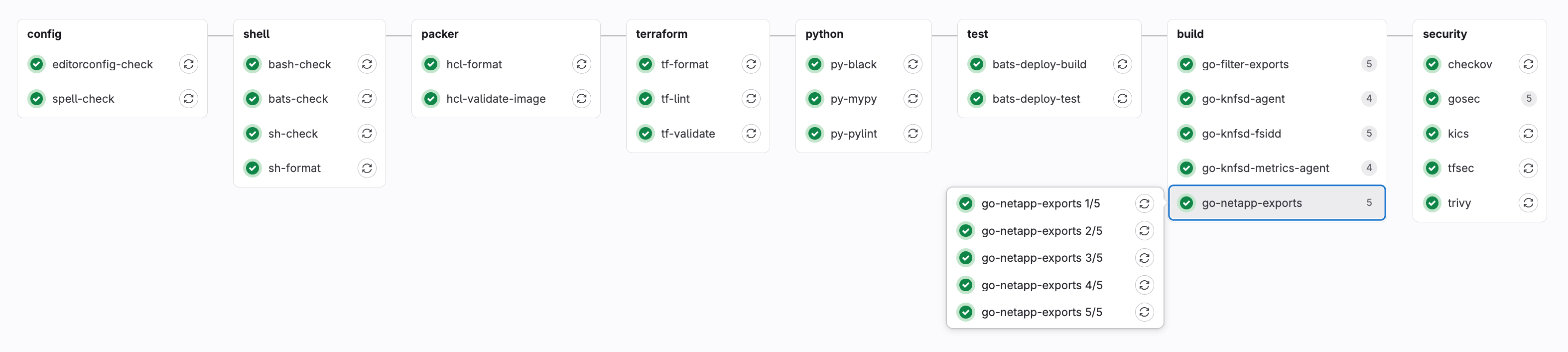

GitLab CI Jobs

Pipeline Overview

The GitLab CI pipeline is structured into 9(+1 scheduled) distinct stages that execute sequentially, with jobs within each stage running in parallel where possible:

  1. dependencies - Dependency management and automated updates (scheduled)
  2. config - Editorconfig, spell-check, and formatting
  3. shell - Shell script linting and formatting
  4. packer - Packer configuration validation
  5. terraform - Terraform configuration validation and linting
  6. python - Python code quality checks
  7. test - Integration testing
  8. build - Go application lint, test, cross-platform build, and vulnerability scanning
  9. security - Security scanning and vulnerability assessment
  10. docs - Build and publish the documentation site to GitLab Pages

Configuration

To enable this pipeline, you should:

  1. Copy the .gitlab-ci-aws.yml file and rename it to .gitlab-ci.yml (already added to the .gitignore file)

  2. Create a GitLab Personal Access Token named RENOVATE_TOKEN with the following scopes:

    api,read_api,read_user,self_rotate,read_repository,write_repository,read_registry

  3. Create a GitLab environment named renovate.

  4. Add the following variables to Settings > CI/CD > Variables in your GitLab project:

    Variable Name (Key) Environment Visibility Expanded Description
    PACKER_GITHUB_API_TOKEN All (default) Masked Yes A GitHub PAT (personal access token) to reduce throttling from GitHub API (can be same value as RENOVATE_GITHUB_COM_TOKEN).
    RENOVATE_GITHUB_COM_TOKEN renovate Masked Yes A GitHub PAT (personal access token) to reduce throttling from GitHub API (can be same value as PACKER_GITHUB_API_TOKEN).
    RENOVATE_TOKEN renovate Masked Yes A GitLab PAT (personal access token) with access to the knfsd-file-cache repository. Insert the RENOVATE_TOKEN value from step 2 above.

    URL Links:

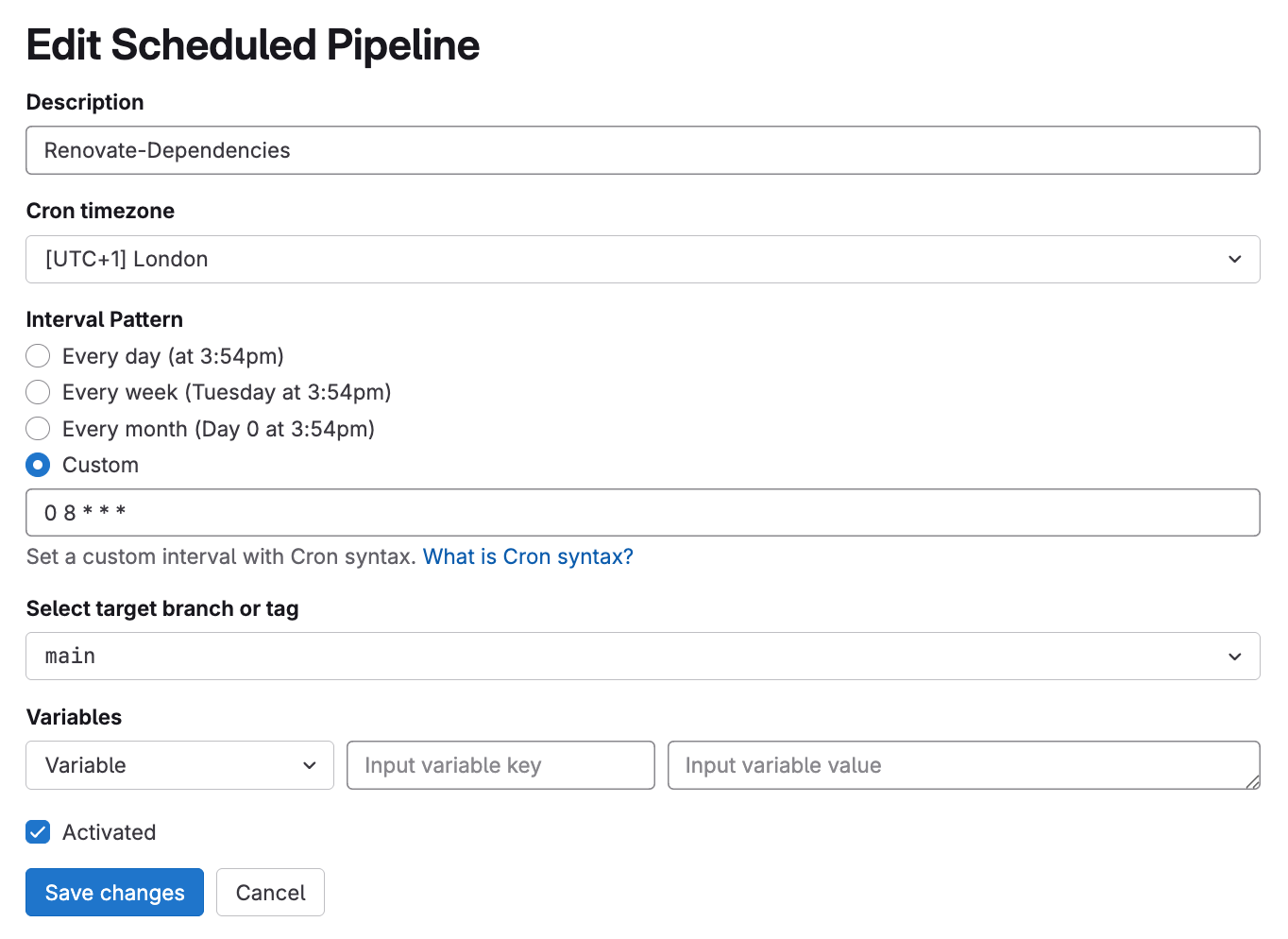

  5. Schedule the renovate job to run daily at 08:00 UTC+1 (or as needed) via Build > Pipeline schedules in your GitLab project.

    GitLab Renovate Schedule

GitLab Runners

The provided .gitlab-ci-aws.yml file assumes the following shared GitLab Runner configuration is available:

Arch Size vCPU Memory
amd64 medium 2 8GB
amd64 xlarge 8 32GB
amd64 2xlarge 16 64GB

Runner tags are in the format of keyword:value. Example of tagging:

tags:
  - arch:amd64
  - size:xlarge

Gitlab runner compute specification and architecture used is dictated by tags in our gitlab-ci-aws.yml file. This should be modified to match your GitLab Runner configuration.

The most compute and/or network intensive CI jobs are configured with a 2xlarge runner.

Pipeline Stages and Jobs

Dependencies Stage (scheduled)

renovate-config-validator

renovate

  • Purpose: Automated dependency updates using Renovate
  • Schedule: Runs only on scheduled pipelines
  • Reference: Renovate Bot Documentation
  • Dependencies: Requires renovate-config-validator to pass
  • Failure Policy: Blocking

Config Stage

editorconfig-check

spell-check

  • Purpose: Checks for spelling errors in documentation and comments
  • Tool: Codespell
  • Configuration: Uses .codespellrc configuration file
  • Failure Policy: Blocking

Shell Stage

bash-check, bats-check, sh-check

  • Purpose: Static analysis of shell scripts for common issues
  • Tool: ShellCheck
  • Reference: ShellCheck Documentation
  • Scope: Analyzes .bash, .bats, and .sh files respectively
  • Failure Policy: Warning (allows pipeline to continue)

sh-format

Packer Stage

hcl-format

  • Purpose: Validates HCL file formatting for Packer configurations
  • Tool: Packer built-in formatter
  • Reference: Packer fmt Command
  • Failure Policy: Blocking

hcl-validate-image

  • Purpose: Validates Packer template syntax and configuration for knfsd proxy image
  • Tool: Packer built-in validator
  • Reference: Packer validate Command
  • Failure Policy: Blocking

Terraform Stage

tf-format

  • Purpose: Validates Terraform file formatting
  • Tool: Terraform built-in formatter
  • Reference: Terraform fmt Command
  • Failure Policy: Blocking

tf-lint

  • Purpose: Advanced Terraform linting and best practices validation
  • Tool: TFLint
  • Configuration: Uses .tflint.hcl configuration file
  • Reference: TFLint Documentation
  • Failure Policy: Blocking

tf-validate

  • Purpose: Validates Terraform configuration syntax across all modules
  • Tool: Terraform built-in validator
  • Reference: Terraform validate Command
  • Cache: Uses Terraform plugin cache for performance
  • Failure Policy: Blocking

Python Stage

py-black

  • Purpose: Python code formatting validation
  • Tool: Black
  • Target: Python 3.14 compatibility
  • Reference: Black Documentation
  • Failure Policy: Blocking

py-mypy

  • Purpose: Static type checking for Python code
  • Tool: MyPy
  • Reference: MyPy Documentation
  • Cache: Uses MyPy cache for performance
  • Failure Policy: Blocking

py-pylint

Test Stage

bats-deploy-build

  • Purpose: Builds a Docker container for BATS (Bash Automated Testing System) tests
  • Tool: Kaniko for container builds
  • Registry: Stores built image in GitLab Container Registry
  • Reference: GitLab Container Registry
  • Failure Policy: Blocking

bats-deploy-test

  • Purpose: Executes deployment validation tests using BATS
  • Tool: BATS
  • Dependencies: Requires bats-deploy-build to complete
  • Reference: BATS Documentation
  • Failure Policy: Blocking

Build Stage

The build stage contains multiple Go application builds organized into sequential sub-jobs:

go-filter-exports (5 jobs)

  1. populate-cache: Downloads and caches Go modules
  2. lint,format: Code linting and formatting validation
  3. vulnerability scan: Security vulnerability assessment
  4. test,vet,race,cover: Comprehensive testing including race condition detection
  5. build: Multi-architecture binary compilation (AMD64, ARM64)

go-knfsd-agent (4 jobs)

Similar structure to filter-exports but without vulnerability scanning step.

go-knfsd-fsidd (5 jobs)

Includes database integration testing with a DynamoDB Local service container.

go-knfsd-metrics-agent (4 jobs)

Largest Go project requiring 2xlarge runners for performance.

go-netapp-exports (5 jobs)

Includes certificate generation for testing TLS functionality.

go-smoke-tests (4 jobs)

Builds the Terratest-based smoke tests located in image/smoke-tests/:

  1. populate-cache: Downloads and caches Go modules
  2. lint,format: Code linting and formatting validation
  3. vulnerability scan: Security vulnerability assessment
  4. build: Compiles the ./cmd/remote test binary (go test -c)

Common Go Job Features:

  • Linting: golangci-lint with comprehensive rule set
  • Vulnerability Scanning: govulncheck
  • Testing: Race condition detection, code coverage, and static analysis
  • Multi-arch Builds: Both AMD64 and ARM64 architectures
  • Caching: Separate caches for modules, build artifacts, and lint results

Security Stage

checkov

  • Purpose: Infrastructure as Code security scanning
  • Tool: Checkov
  • Reference: Checkov Documentation
  • Configuration: Uses .checkov.yaml configuration file
  • Failure Policy: Warning

gosec (6 jobs)

  • Purpose: Go source code security analysis
  • Tool: Gosec
  • Reference: Gosec Documentation
  • Scope: Analyzes each Go project independently
  • Failure Policy: Warning

kics

  • Purpose: Infrastructure security scanning
  • Tool: KICS
  • Reference: KICS Documentation
  • Configuration: Uses .kics.yaml configuration file
  • Failure Policy: Warning

semgrep

  • Purpose: Static code analysis using the open source (community) rule set
  • Tool: Semgrep
  • Reference: Semgrep Documentation
  • Configuration: Uses .semgrepignore for exclusions
  • Failure Policy: Warning

trivy

  • Purpose: Comprehensive security scanning for secrets, vulnerabilities, misconfigurations, and licenses
  • Tool: Trivy
  • Reference: Trivy Documentation
  • Configuration: Uses .trivyignore.yaml for exclusions, .trivy.tfvars for Terraform variables
  • Cache: Maintains vulnerability database cache
  • Failure Policy: Warning

Docs Stage

pages

  • Purpose: Builds the Material for MkDocs documentation site (AWS Cloudscape-aligned) and publishes it to GitLab Pages
  • Tool: MkDocs with the mkdocs-material and mkdocs-same-dir plugins
  • Build: mkdocs build --strict --site-dir site from the repository root; the output is published from, and stored as an artifact in, the site directory
  • Failure Policy: Blocking (a broken build or link fails the job under --strict)

The site and repository metadata are auto-resolved from GitLab predefined variables at build time, so no manual Settings > CI/CD > Variables entries are required for the docs (unlike RENOVATE_TOKEN above):

MkDocs env var GitLab predefined variable Purpose
MKDOCS_SITE_URL CI_PAGES_URL Canonical site URL (the GitLab Pages URL)
MKDOCS_REPO_URL CI_PROJECT_URL Repository link shown in the site header
MKDOCS_REPO_NAME CI_PROJECT_PATH Repository name shown in the site header

The committed mkdocs.yml contains no hard-coded URLs; these variables supply them at runtime, so the same configuration also works unchanged for a local build/serve and for GitHub Pages. Pages access follows the project's visibility (Public / Internal / Private), configured once in the project's Settings > General > Visibility and Settings > Pages, and is not set by the CI job.

Cache Strategy

The pipeline implements a sophisticated caching strategy to optimize build times and resource usage:

Go Module Caches

  • Key Pattern: {project}-mod-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches downloaded Go modules to avoid repeated downloads
  • Policy: Write on cache population jobs, read-only on subsequent jobs
  • Location: .go/pkg/mod

Go Build Caches

  • Key Pattern: {project}-build-${CI_JOB_NAME}-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches compiled Go artifacts for faster builds
  • Location: .go/.cache/go-build

Go Lint Caches

  • Key Pattern: {project}-lint-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches golangci-lint analysis results
  • Location: .go/.cache/golangci-lint

Terraform Plugin Cache

  • Key Pattern: tf-plugins-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches Terraform provider plugins and lock files
  • Location: .terraform.d/plugin-cache and various .terraform.lock.hcl files
  • Reference: Terraform Plugin Cache

Python Type Checking Cache

  • Key Pattern: mypy-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches MyPy type analysis results
  • Location: .mypy_cache

Security Scanning Cache

  • Key Pattern: trivy-${CI_COMMIT_REF_SLUG}
  • Purpose: Caches Trivy vulnerability database
  • Location: .trivycache

GitLab Container Registry Usage

BATS Deploy Container

The pipeline uses the GitLab Container Registry to store and cache the bats-deploy container:

  • Purpose: Contains BATS testing framework and dependencies for deployment validation
  • Build Job: bats-deploy-build
  • Registry Path: ${CI_REGISTRY_IMAGE}/bats-deploy:${CI_COMMIT_REF_SLUG}
  • Builder: Kaniko for rootless container builds
  • Caching: Utilizes Docker layer caching for faster subsequent builds
  • Usage: Consumed by bats-deploy-test job for running deployment tests

Benefits:

  • Faster test execution by pre-building test environment
  • Consistent testing environment across pipeline runs
  • Reduced external dependencies during test execution
  • Layer caching reduces build times for incremental changes

GitLab Dependency Proxy

The pipeline extensively uses the GitLab Dependency Proxy for all container image pulls:

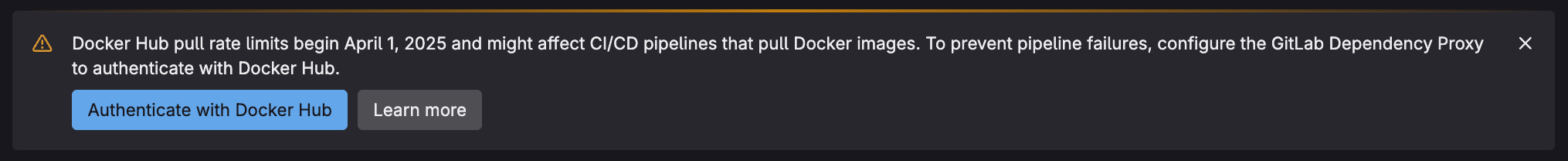

GitLab CI Docker Hub Rate Limits

Ensure you configure GitLab Dependency Proxy in your GitLab group/project with Docker Hub credentials to reduce throttling from Docker Hub. You can get your Docker Hub credentials from Docker Hub.

Configuration

  • Variable: CI_DEPENDENCY_PROXY_DIRECT_GROUP_IMAGE_PREFIX
  • Purpose: Proxies Docker Hub requests through GitLab
  • Format: ${CI_DEPENDENCY_PROXY_DIRECT_GROUP_IMAGE_PREFIX}/image:tag

Benefits

  1. Performance: Caches frequently used images locally within GitLab infrastructure
  2. Reliability: Reduces dependency on external registry availability
  3. Cost Optimization: Minimizes external bandwidth usage and potential rate limiting
  4. Security: Provides additional scanning and policy enforcement opportunities
  5. Compliance: Helps with air-gapped or restricted network environments

Usage Examples

# BAD: Direct Docker Hub image
image: golang

# GOOD: via Dependency Proxy
image: ${CI_DEPENDENCY_PROXY_DIRECT_GROUP_IMAGE_PREFIX}/golang

Reference: GitLab Dependency Proxy Documentation

Pipeline Optimization Features

Performance Optimizations

  • Parallel Execution: Jobs within stages run concurrently where possible
  • Selective Caching: Different cache policies (read/write/pull) optimize cache usage
  • Runner Sizing: Appropriate runner sizes (medium/xlarge/2xlarge) based on job requirements
  • Fast Compression: Uses fastest compression for artifacts and caches
  • Shallow Git Clone: Limited git depth (10 commits) for faster checkouts

Resource Management

  • Architecture Targeting: Jobs specify required architecture (amd64)
  • Runner Tagging: Uses specific runner tags for job placement
  • Interruptible Jobs: Allows job cancellation for resource optimization
  • Automatic Retry: System failure recovery with single retry attempt

Quality Gates

  • Blocking vs Warning: Critical jobs block pipeline progression, while security scans provide warnings
  • Dependency Management: Job dependencies ensure proper execution order
  • Multi-stage Validation: Multiple validation layers catch different types of issues

This CI pipeline ensures code quality, security, and reliability while maintaining developer productivity through optimized caching and parallel execution strategies.
