Security Architecture

Security Architecture

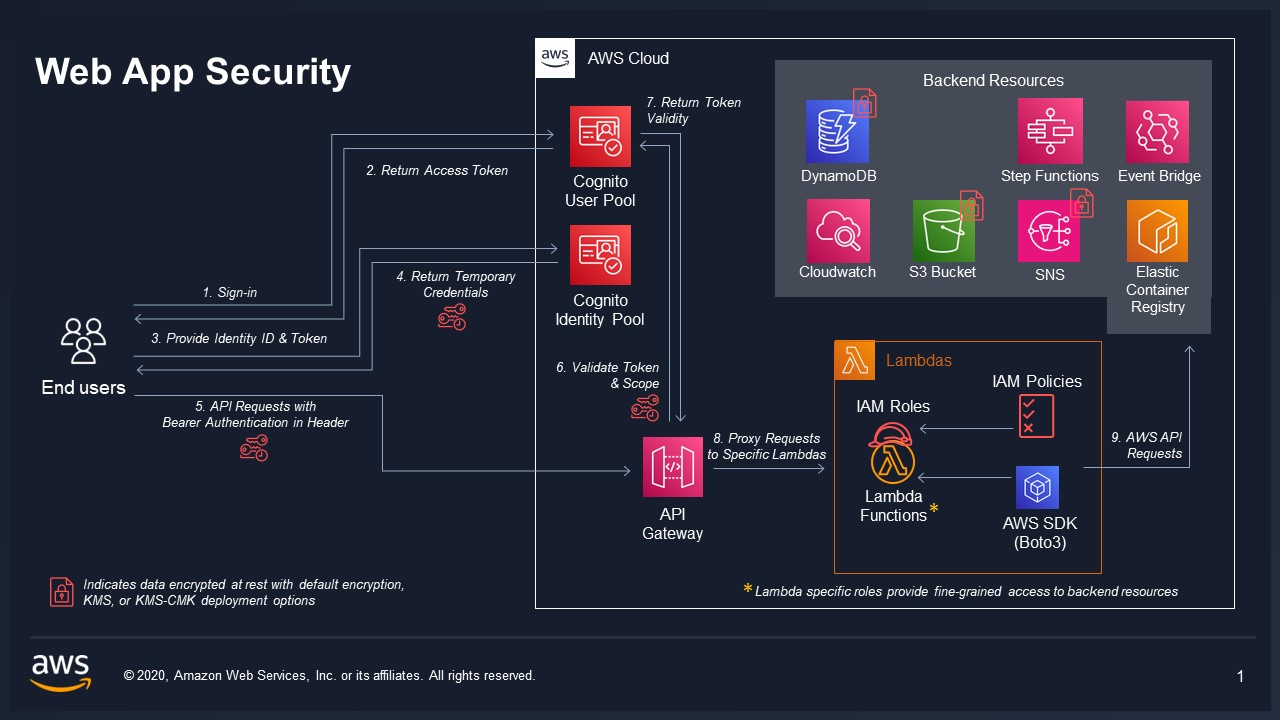

VAMS implements a defense-in-depth security architecture with multiple layers of protection for authentication, authorization, encryption, network isolation, and audit logging. This page describes each security control and how they work together.

Shared Responsibility​

VAMS operates within the AWS shared responsibility model. AWS manages the security of the underlying cloud infrastructure, while VAMS implements security controls at the application layer. Customers are responsible for configuring deployment options (encryption, VPC, IP restrictions) according to their compliance requirements.

Authentication​

VAMS supports three authentication mechanisms, all validated by a custom Lambda authorizer attached to the Amazon API Gateway V2 HttpApi.

Amazon Cognito​

The default authentication provider. VAMS deploys an Amazon Cognito User Pool with configurable password policies, an app client for the web application, and an identity pool for federated identity.

ConfigurationDescription
authProvider.useCognito.enabledEnable Amazon Cognito as the auth provider
authProvider.useCognito.useSamlEnable SAML federation for enterprise SSO
authProvider.useCognito.useUserPasswordAuthFlowEnable username/password authentication flow

SAML Federation​

SAML authentication enables federated access to VAMS through your organization's identity provider (such as Auth0, Active Directory, or Google Workspace). When enabled, Amazon Cognito acts as a SAML service provider.

Configuration steps:

  1. Set authProvider.useCognito.useSaml to true in infra/config/config.json.
  2. Edit infra/config/saml-config.ts with the following required fields:
FieldDescription
nameIdentifies the SAML identity provider in the Amazon Cognito User Pool and in the web UI
cognitoDomainPrefixDNS-compatible, globally unique string used as a subdomain of the Amazon Cognito sign-on URL (for example, https://\{prefix\}.auth.\{region\}.amazoncognito.com/saml2/idpresponse)
metadataContentURL of your SAML metadata. Can also point to a local file if metadataType is changed to cognito.UserPoolIdentityProviderSamlMetadataType.FILE
attributeMappingMaps SAML attributes back to VAMS (email, fullname)
  1. Deploy or redeploy the CDK stack with cdk deploy --all.

After deployment, provide these stack outputs to your identity provider to establish trust:

  • SAML IdP Response URL -- the Amazon Cognito SAML endpoint
  • SP URN / Audience URI / SP entity ID -- the service provider identifier
  • CloudFront Distribution URL (or ALB URL) -- for the callback URL list (include both with and without a trailing slash)
SAML Attribute Mapping

The default attribute mapping uses standard SAML claim URIs. Review infra/config/saml-config.ts to customize the mapping for your identity provider's claim format.

External OAuth Identity Provider​

When Amazon Cognito is not available, VAMS supports external OAuth identity providers. The custom Lambda authorizer validates JWT tokens against the configured JWKS endpoint.

ConfigurationDescription
authProvider.useExternalOAuthIdp.enabledEnable external OAuth IDP
authProvider.useExternalOAuthIdp.idpAuthProviderUrlOAuth provider URL

API Keys​

VAMS supports API key authentication for machine-to-machine access. API keys are stored as SHA-256 hashes in the ApiKeyStorageTable. The custom authorizer validates incoming API keys by hashing them and comparing against stored hashes.

Custom Lambda Authorizer​

VAMS uses a custom Lambda authorizer for all Amazon API Gateway endpoints, providing unified authentication across Amazon Cognito, external OAuth, and API key mechanisms.

Authorizer Capabilities​

  • Unified Authentication: Supports Amazon Cognito, external OAuth, and API key JWT token verification in a single authorizer
  • Hybrid JWT Libraries: Uses joserfc for Amazon Cognito (RFC-compliant JOSE) and PyJWT for external identity providers
  • IP Range Restrictions: Optional IP-based access control with configurable IP range pairs (validated before JWT verification for performance)
  • Payload Format Version 2.0: Simple boolean responses (isAuthorized: true/false)
  • Comprehensive JWT Claims Context: All JWT claims are passed to downstream Lambda functions
  • Public Key Caching: One-hour TTL for JWKS public keys to reduce external API calls
  • Dedicated Lambda Layer: Isolated dependencies for security and performance

Authorizer Configuration​

The authorizer behavior is controlled through authProvider.authorizerOptions in the deployment configuration and the CUSTOM_AUTHORIZER_IGNORED_PATHS constant in infra/config/config.ts.

Default API routes:

SettingValue
Identity source$request.header.Authorization
Cache TTL30 seconds
Response typeSIMPLE (payload format version 2.0)

Ignored paths (/api/amplify-config, /api/version):

SettingValue
Identity source$context.routeKey
Cache TTL3600 seconds (1 hour)
BehaviorBypasses JWT verification, allows immediate access

Authorizer Lambda Layer​

The authorizer uses a dedicated Lambda layer with the following dependencies:

joserfc==1.6.1             # RFC-compliant JOSE (JWT/JWS/JWE) for Cognito
PyJWT[crypto]==2.12.1      # External IDP JWT verification
cryptography==45.0.6       # Cryptographic primitives
requests==2.32.5           # HTTP requests for JWKS retrieval
aws-lambda-powertools==3.19.0  # Lambda Powertools for logging

JWT Claims Context Integration​

The authorizer passes all JWT claims to downstream Lambda functions through the Amazon API Gateway context. Backend handlers access claims using the following precedence:

# Standard API Gateway authorizer format
if 'jwt' in event['requestContext']['authorizer']:
    claims = event['requestContext']['authorizer']['jwt']['claims']
# Custom Lambda authorizer format
elif 'lambda' in event['requestContext']['authorizer']:
    claims = event['requestContext']['authorizer']['lambda']
# Lambda cross-call format
elif 'lambdaCrossCall' in event:
    claims = event['lambdaCrossCall']

Supported claims:

SourceClaims
Amazon Cognitosub, cognito:username, email, token_use, aud, iss, exp
External OAuth IDPsub, preferred_username, email, upn, username
VAMS customvams:tokens, vams:roles, vams:externalAttributes
GovCloud Token Limitation

AWS GovCloud deployments with the GovCloud configuration enabled only support v1 of the Amazon Cognito Lambda triggers. This means only Access tokens (not ID tokens) can be used for VAMS API authentication in GovCloud.

JWT Token Requirements​

All VAMS API calls require a valid JWT token with the following claims structure:

{
    "claims": {
        "tokens": ["<username>"],
        "roles": ["<role1>", "<role2>"],
        "externalAttributes": []
    }
}

The tokens array must include the authenticated VAMS username. The roles and externalAttributes fields are optional as they are resolved at runtime from the VAMS authorization database.

Authorizer Customization​

Organizations can customize the authorizer behavior by modifying:

  1. IP Validation Logic: Modify is_ip_authorized() for custom IP validation
  2. Path Handling: Update ignored paths in the CUSTOM_AUTHORIZER_IGNORED_PATHS constant in infra/config/config.ts
  3. JWT Verification: Modify verify_cognito_jwt() (using joserfc) or verify_external_jwt() (using PyJWT)
  4. Claims Processing: Extend context generation to include additional custom claims

Implementation Files​

ComponentPath
HTTP Authorizerbackend/backend/handlers/auth/apiGatewayAuthorizerHttp.py
WebSocket Authorizerbackend/backend/handlers/auth/apiGatewayAuthorizerWebsocket.py
CDK Lambda Buildersinfra/lib/lambdaBuilder/authFunctions.ts
Dedicated Lambda Layerbackend/lambdaLayers/authorizer/
Configuration Constantsinfra/config/config.ts

Authorization​

Two-Tier Casbin ABAC/RBAC​

VAMS uses the Casbin policy engine to enforce fine-grained attribute-based access control (ABAC) combined with role-based access control (RBAC).

Tier 1 -- API Route Authorization controls which API endpoints a user's role can access. Policies use api and web object types to gate route-level access.

Tier 2 -- Object Entity Authorization controls which specific data entities a user can access. Policies use entity-type constraints (database, asset, pipeline, workflow, tag, tagType, role, userRole, metadataSchema, apiKey) with attribute-based rules.

Constraint Fields​

The following fields can be used in ABAC policy rules:

FieldDescription
databaseIdDatabase identifier
assetNameAsset name
assetTypeAsset type classification
tagsAsset tags
tagNameTag name
tagTypeNameTag type name
roleNameRole name
userIdUser identifier
pipelineIdPipeline identifier
pipelineTypePipeline type
pipelineExecutionTypePipeline execution type (Lambda, SQS, EventBridge)
workflowIdWorkflow identifier
metadataSchemaNameMetadata schema name
metadataSchemaEntityTypeMetadata entity type
object__typeEntity type for Tier 2 enforcement
route__pathAPI route path for Tier 1 enforcement

MFA-Aware Roles​

Roles can require MFA verification. When a role has mfaRequired=True, it is only active when the user's authentication claims include mfaEnabled=True. This provides an additional security layer for privileged operations.

Policy Caching​

The Casbin enforcer caches user policies with a 60-second TTL per user. This reduces Amazon DynamoDB reads while ensuring policy changes propagate within one minute.

Encryption​

Encryption at Rest​

All VAMS storage resources support encryption at rest:

ResourceDefault EncryptionKMS CMK Encryption
Amazon DynamoDB tablesAWS managed keysCustomer-managed KMS key
Amazon S3 bucketsAmazon S3 managed keys (SSE-S3)Customer-managed KMS key (SSE-KMS)
Amazon SNS topicsN/ACustomer-managed KMS key
Amazon SQS queuesSQS managed encryptionCustomer-managed KMS key
Amazon CloudWatch LogsN/ACustomer-managed KMS key
Amazon OpenSearchService-managedCustomer-managed KMS key
Enabling KMS CMK Encryption

Set useKmsCmkEncryption.enabled = true in the deployment configuration. An external key can be imported via useKmsCmkEncryption.optionalExternalCmkArn. If no external key is provided, VAMS creates a new AWS KMS key with automatic key rotation enabled.

KMS Key Policy​

The VAMS KMS key policy grants cryptographic operations to the following service principals:

  • Amazon S3
  • Amazon DynamoDB
  • Amazon SQS
  • Amazon SNS
  • Amazon ECS and Amazon ECS Tasks
  • Amazon EKS
  • Amazon CloudWatch Logs
  • AWS Lambda
  • AWS STS
  • AWS CloudFormation
  • Account root principal (for custom resource Lambda roles)
  • Amazon CloudFront (conditional)
  • Amazon OpenSearch Service / Amazon OpenSearch Serverless (conditional)

Encryption in Transit​

All data in transit is encrypted using TLS:

  • Amazon S3 bucket policies enforce TLS by denying all s3:* actions when aws:SecureTransport=false
  • Amazon SNS topics enforce SSL with the enforceSSL property
  • Amazon SQS queues enforce SSL with the enforceSSL property
  • Amazon API Gateway uses HTTPS endpoints exclusively
  • Amazon CloudFront / Application Load Balancer terminates TLS at the edge

The following bucket policy statement is applied to every Amazon S3 bucket in VAMS:

{
    "Effect": "Deny",
    "Principal": "*",
    "Action": "s3:*",
    "Resource": ["arn:{partition}:s3:::bucket-name/*", "arn:{partition}:s3:::bucket-name"],
    "Condition": {
        "Bool": { "aws:SecureTransport": "false" }
    }
}

Content Security Policy (CSP)​

VAMS generates a dynamic Content Security Policy for the web application based on the deployment configuration. The CSP is constructed at AWS CDK synthesis time and applied to the web distribution.

Base CSP Directives​

DirectiveSources
base-uri'none'
default-src'none'
script-src'self', 'unsafe-hashes', SHA-256 hashes for inline scripts
style-src'self', 'unsafe-inline'
connect-src'self', blob:, data:, API Gateway URL, Amazon S3 endpoint
worker-src'self', blob:, data:
img-src'self', blob:, data:, Amazon S3 endpoint
media-src'self', blob:, data:, Amazon S3 endpoint
object-src'none'
frame-ancestors'none'
font-src'self'
manifest-src'self'

Conditional CSP Sources​

ConditionAdded Sources
Amazon Cognito enabledCognito IDP and Identity endpoints in connect-src
SAML enabledCognito auth domain in connect-src
External OAuth IDPIDP auth provider URL in connect-src
allowUnsafeEvalFeatures = true'unsafe-eval' in script-src (required for certain 3D viewer plugins)
Amazon Location Service enabledMaps endpoint in connect-src

Extensible CSP​

Additional CSP sources can be configured via infra/config/csp/cspAdditionalConfig.json. This JSON file supports adding entries to connectSrc, scriptSrc, workerSrc, imgSrc, mediaSrc, fontSrc, and styleSrc arrays.

IP Range Restrictions​

The custom Lambda authorizer supports optional IP-based access control. When authProvider.authorizerOptions.allowedIpRanges is configured with one or more CIDR ranges, the authorizer validates the source IP of each request against the allowlist before proceeding with JWT validation.

IAM Least Privilege​

Each Lambda function receives an individually scoped IAM execution role:

  • Amazon DynamoDB permissions are granted per-table using grantReadData() or grantReadWriteData()
  • Amazon S3 permissions are granted per-bucket using grantRead() or grantReadWrite()
  • AWS KMS permissions are granted only when CMK encryption is enabled
  • Amazon CloudWatch Logs permissions cover only the specific audit log groups
No Wildcard Resource ARNs

Lambda execution roles do not receive Resource: "*" for data operations. All permissions are scoped to specific table ARNs, bucket ARNs, or log group ARNs.

IAM Aspects​

VAMS applies two AWS CDK aspects to all IAM roles in the stack:

AspectPurpose
IamRoleTransformApplies role name prefixes and permission boundaries from cdk.json settings
LogRetentionAspectForces one-year retention on all Amazon CloudWatch Log Groups

CDK Nag Enforcement​

All VAMS stacks are checked against the AWS Solutions security rules (AwsSolutionsChecks) provided by the cdk-nag library. CDK Nag is always enabled and runs during AWS CDK synthesis.

Suppression Requirements​

Every CDK Nag suppression must include a detailed justification explaining why the suppression is acceptable in the VAMS deployment context. Unjustified suppressions are not permitted.

Common Suppressed Rules​

Rule IDReason
AwsSolutions-IAM5Amazon S3 grantReadWrite generates wildcard actions; scoped to VAMS buckets
AwsSolutions-IAM4Managed policies (AWSLambdaBasicExecutionRole, AWSLambdaVPCAccessExecutionRole) used for Lambda
AwsSolutions-L1Lambda runtimes are explicitly managed (Python 3.12, Node.js 20.x)
AwsSolutions-COG3Amazon Cognito AdvancedSecurityMode not available in AWS GovCloud
AwsSolutions-S1Access logs bucket cannot log to itself
AwsSolutions-SQS3Dead-letter queues not used for bucket sync queues (files easily re-driven)

VPC Isolation​

When useGlobalVpc.enabled = true, all Lambda functions can be deployed into VPC isolated subnets with no direct internet access. VPC endpoints provide connectivity to AWS services. See the Network Architecture page for full details.

FIPS Endpoints​

When useFips = true (typically in AWS GovCloud), the partition-aware service helper automatically selects FIPS-compliant endpoints for all AWS service calls. The service helper supports four AWS partitions:

PartitionIdentifier
Commercialaws
GovCloudaws-us-gov
Chinaaws-cn
Isolatedaws-iso

Blocked File Types​

VAMS validates all uploaded files against blocked extension and MIME type lists to prevent malicious content:

Blocked Extensions​

.jar, .java, .com, .php, .reg, .pif, .bak, .dll, .exe, .nat, .cmd, .lnk, .docm, .vbs, .bat

Blocked MIME Types​

application/java-archive, application/x-msdownload, application/x-sh, application/javascript, application/x-powershell, application/vbscript, and additional potentially dangerous MIME types.

Audit Logging​

VAMS maintains nine dedicated Amazon CloudWatch Log Groups for audit logging, each with 10-year retention:

Log GroupEvents
AuthenticationLogin attempts, token validation results
AuthorizationAuthorization decisions (allow/deny) with policy context
File UploadFile upload operations with user, file, and bucket details
File DownloadFile download operations
File Download StreamedStreamed file download operations
Auth OtherMiscellaneous authentication events
Auth ChangesRole, constraint, and user-role modifications
ActionsGeneral CRUD operations
ErrorsApplication errors and exceptions
Silent Failure Pattern

Audit logging uses a silent failure pattern. If writing to an audit log fails, the error is logged locally to the Lambda's standard log group, but Lambda execution continues normally. This prevents audit logging failures from disrupting application operations.

AWS CloudTrail Integration​

When addStackCloudTrailLogs = true, VAMS deploys an AWS CloudTrail trail that logs:

  • All AWS Lambda data events
  • All Amazon S3 data events
  • Trail data stored in the Access Logs bucket under cloudtrail-logs/
  • Trail data also sent to Amazon CloudWatch Logs for real-time analysis

S3 Bucket Security​

All Amazon S3 buckets in VAMS are configured with:

SettingValue
Block Public AccessBLOCK_ALL
Object OwnershipOBJECT_WRITER
VersioningEnabled
Server Access LoggingEnabled (to Access Logs bucket)
TLS EnforcementDeny policy for non-secure transport
Lifecycle RulesAbort incomplete multipart uploads after 7-14 days
Optional KMS EncryptionSSE-KMS with bucket key enabled

Additional Bucket Policies​

Custom bucket policies can be applied to all VAMS Amazon S3 buckets via infra/config/policy/s3AdditionalBucketPolicyConfig.json. The policy statement's Resource field is automatically updated to reference the target bucket ARN.

GovCloud Security Constraints​

When deploying to AWS GovCloud with govCloud.enabled = true:

ConstraintEnforcement
VPC requireduseGlobalVpc.enabled must be true
No Amazon CloudFrontuseCloudFront.enabled must be false
No Amazon Location ServiceuseLocationService.enabled must be false
FIPS endpointsAutomatically selected by service helper

When govCloud.il6Compliant = true:

ConstraintEnforcement
No Amazon CognitouseCognito.enabled must be false
No AWS WAFuseWaf must be false
AWS KMS CMK requireduseKmsCmkEncryption.enabled must be true

Security Recommendations​

The following recommendations should be reviewed with your organization's security team before deploying VAMS to production:

  1. Audit frontend dependencies — Run npm audit in the web/ directory prior to deploying the frontend to ensure all packages are up to date. Run npm audit fix to mitigate critical vulnerabilities.
  2. Use least-privilege IAM roles — When deploying to an AWS account, create an AWS IAM role for deployment that limits access to the least privilege necessary based on your internal security policies.
  3. Bootstrap CDK with minimal permissions — Run AWS CDK bootstrap with the least-privileged AWS IAM role needed to deploy CDK and VAMS environment components.
  4. Review token timeouts — Authentication access, ID, and file presigned URL token timeouts default to 1 hour per security best practices. Adjust as necessary for your organization's requirements.
  5. Configure IP restrictions — Consider configuring IP range restrictions using authorizerOptions.allowedIpRanges in the deployment configuration to limit API access to known networks.
  6. Enable KMS encryption — For production deployments, enable customer-managed KMS encryption (useKmsCmkEncryption.enabled: true) for all storage resources.
  7. Use CloudFront with custom TLS — When using Amazon CloudFront, consider configuring a custom domain with your own TLS certificate rather than the default CloudFront domain.
  8. Review Content Security Policy — The CSP is dynamically generated based on deployment configuration. Review the generated policy headers for compliance with your organization's standards.
  9. Enable audit logging review — Regularly review audit logs in Amazon CloudWatch for suspicious activity patterns such as repeated authorization failures or unusual file download volumes.
Shared Responsibility

VAMS is provided under the AWS shared responsibility model. Any customization for customer use must go through a security review to confirm that modifications do not introduce new vulnerabilities. Any team implementing VAMS takes on the responsibility of ensuring their implementation has gone through a proper security review.

Next Steps​
