Gaussian Splatting Pipeline

The Gaussian Splatting pipeline generates 3D Gaussian splat reconstructions from images or video using the open-source 3D Reconstruction Toolbox. It accepts collections of photographs (as a ZIP archive) or video files and produces 3D Gaussian splat models viewable in the VAMS web interface. This pipeline runs on AWS Batch with GPU instances to accelerate the computationally intensive training process.

Supported Input Formats​

FormatExtensionDescription
ZIP archive.zipArchive containing a set of images for multi-view reconstruction
MP4 video.mp4Video file from which frames are extracted for reconstruction
MOV video.movQuickTime video file from which frames are extracted

Output Formats​

FormatExtensionDescription
PLY.plyStandard 3D Gaussian splat point cloud for viewing
SPZ.spzCompressed splat format optimized for web viewing

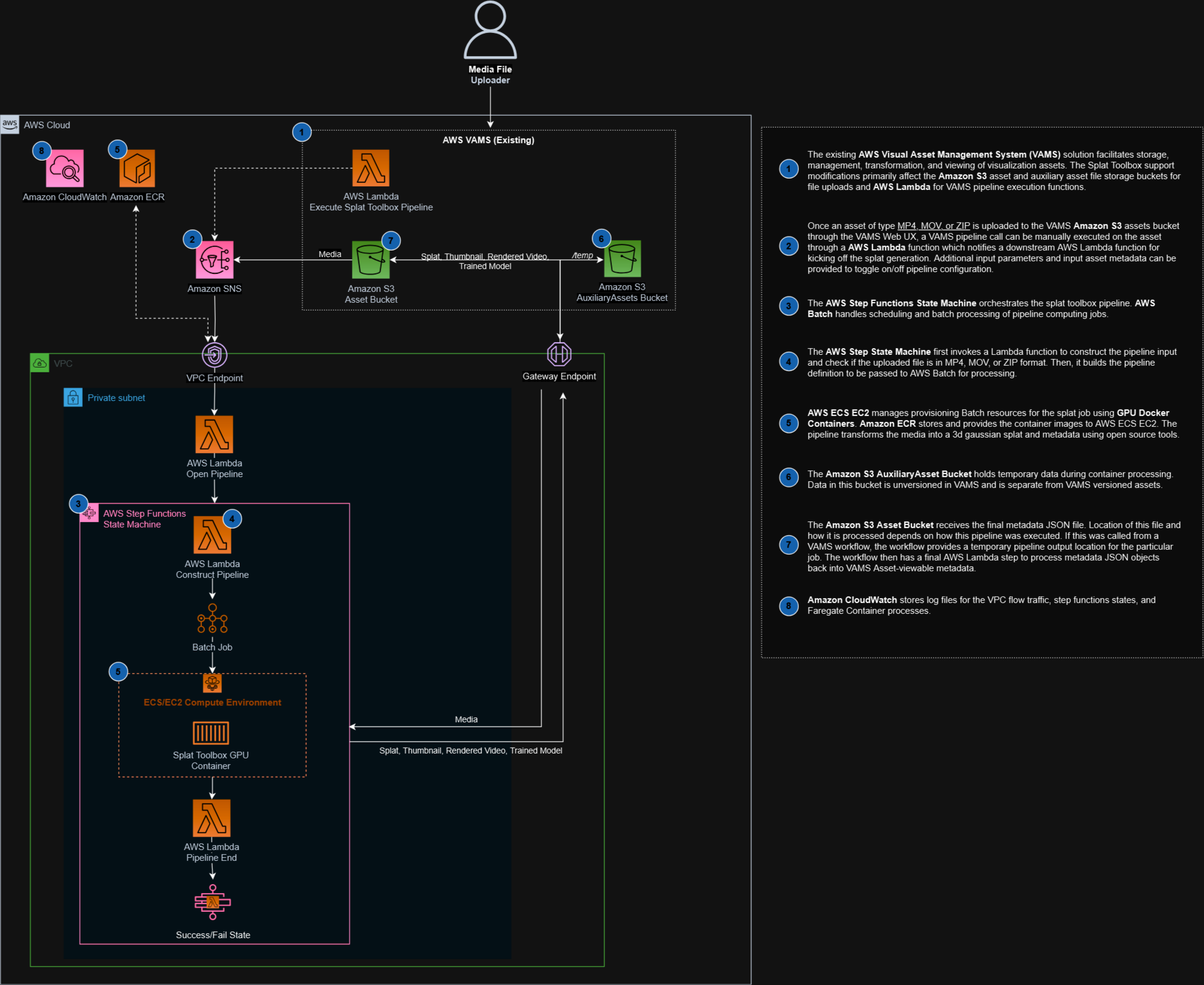

Architecture​

Processing Steps​

The pipeline executes four major stages within a single AWS Batch GPU job:

  1. Input Processing -- Accepts a ZIP archive of images or a video file. Videos are decomposed into individual frames. Input format and quality are validated.

  2. Structure from Motion (SfM) -- Uses COLMAP or GLOMAP for camera pose estimation. This stage generates a sparse 3D point cloud and estimates camera intrinsic and extrinsic parameters from the input images.

  3. 3D Gaussian Splatting -- Uses NerfStudio's splatfacto implementation to train a 3D Gaussian representation of the scene. GPU acceleration is used for the iterative training process.

  4. Output Generation -- The trained model is exported as a PLY file for standard 3D viewing and optionally as a compressed SPZ format for optimized web viewing. Results are uploaded to the asset bucket in Amazon S3.

Duplicate Job Detection​

The constructPipeline Lambda function includes a deduplication mechanism that uses lock files in the auxiliary Amazon S3 bucket. If the same job name and input file combination is submitted within a 5-minute window, the duplicate request is rejected. This prevents redundant GPU workloads from accidental double-triggers.

Configuration​

Enable this pipeline in infra/config/config.json:

{
    "app": {
        "useGlobalVpc": {
            "enabled": true
        },
        "pipelines": {
            "useSplatToolbox": {
                "enabled": true,
                "useCodeBuild": true,
                "autoRegisterWithVAMS": true
            }
        }
    }
}

Configuration Options​

OptionDefaultDescription
enabledfalseDeploy the Gaussian Splatting pipeline infrastructure. Requires the global VPC.
useCodeBuildfalseBuild the container image with AWS CodeBuild instead of locally during cdk deploy. See Container Image.
autoRegisterWithVAMSfalseAutomatically register the pipeline and workflow during CDK deployment.
No Auto-Trigger on Upload

Unlike preview pipelines, the Gaussian Splatting pipeline does not support autoRegisterAutoTriggerOnFileUpload. Reconstruction jobs are resource-intensive and should be triggered intentionally through the VAMS web interface or API.

Pipeline Parameters​

Parameters are supplied through the selected configuration template's configBody (or a per-run override). Only keys the container recognizes take effect; an unrecognized key is skipped and reported on the container's own log line.

Four of them are declared as template tags, so the execute form renders a field for each and the value is substituted into the body at launch. The Template tag column names that field's tag key; a row with -- is not tag-backed and is set by editing the configuration body.

ParameterTemplate tagDescriptionDefault
MODEL--Splatting model type (for example splatfacto, splatfacto-big)splatfacto
MAX_STEPS--Number of training iterations15000
RECON_SOFTWARE_NAME--Reconstruction software (colmap, glomap, hloc, map_anything)glomap
SPHERICAL_CAMERA--Treat the input as a 360/spherical captureFalse
REMOVE_BACKGROUND--Enable background removal from input imagesFalse
ENABLE_SPZ--Export the compressed SPZ splat formatTrue
ENABLE_SOG--Export the SOG splat formatTrue
RUN_RECONRUN_RECONRecover camera poses from the input capture before trainingTrue
RUN_TRAINRUN_TRAINTrain the splat modelTrue
CROP_OUTPUT_BOUNDSCROP_OUTPUT_BOUNDSTrim the exported splat to the reconstructed scene boundsFalse
CROP_MODECROP_MODEHow the crop bounds are computed (rigid_body, environment)Set per template
BACKGROUND_REMOVAL_MODEL--Segmentation model used for background and human-subject removalu2net
REMOVE_OBJECT--Remove the objects named by OBJECT_REMOVAL_OBJECTS from the inputFalse
OBJECT_REMOVAL_ACTION--remove masks the object out; erase inpaints it with SDXLerase
OBJECT_REMOVAL_OBJECTS--Objects the object-removal step targets['human']

Clearing RUN_RECON reuses camera poses from an earlier run, and clearing RUN_TRAIN exports from an already-trained model. Both read that run's archive from the input, so neither applies to a fresh capture.

Template configuration body​

The Objects (standard capture) template's body. Each placeholder is resolved from its form field at launch. A boolean tag renders a JSON true or false and its placeholder therefore carries no quotes, while CROP_MODE renders text and sits inside the string it fills:

{
    "RUN_RECON": {{RUN_RECON}},
    "RUN_TRAIN": {{RUN_TRAIN}},
    "CROP_OUTPUT_BOUNDS": {{CROP_OUTPUT_BOUNDS}},
    "CROP_MODE": "{{CROP_MODE}}"
}
note

The pipeline ships two templates — Objects (standard capture) for standard object captures, and Environments (360 / spherical capture), which additionally sets SPHERICAL_CAMERA. Both declare the same four template tags and differ in the CROP_MODE default: rigid_body for Objects, which fits a tight box around a single object, and environment for Environments, which keeps the surrounding scene. Both also allow a per-run configuration edit, so any parameter above can be set on the execute form, tag-backed or not.

Prerequisites​

GPU Instance Availability​

This pipeline requires GPU-enabled instances for AWS Batch compute. The CDK stack creates a GPU compute environment using the BatchGpuPipelineConstruct with the following defaults:

ResourceDefault Value
vCPUs15
Memory60,000 MiB (~58 GB)
GPU1 (NVIDIA)
Retry attempts3
Job timeout43,200 seconds (12 hours)
GPU Instance Limits

Ensure your AWS account has sufficient GPU instance quotas for the target region. Common GPU instance types used include G4dn, G5, and P3 families. If the compute environment cannot provision instances, jobs will remain in a RUNNABLE state indefinitely.

VPC with Internet Access​

The pipeline runs on AWS Batch with GPU instances in private subnets that have internet access via a NAT Gateway. Internet access is required during the container build process to download model weights and dependencies. Most of those weights ship inside the image, so a job needs no egress for background removal or for OBJECT_REMOVAL_ACTION=remove. The default OBJECT_REMOVAL_ACTION=erase is the exception: it fetches Stable Diffusion XL at run time, as do the opt-in dn-splatter model variants (LPIPS and ZoeDepth), so those need egress from the job's subnets. This pipeline requires the global VPC: set app.useGlobalVpc.enabled to true alongside useSplatToolbox, or configuration validation fails with an error naming the pipeline.

Container Image​

The container image is automatically synced from the upstream open-source repository during CDK deployment:

  • Repository: Open Source 3D Reconstruction Toolbox for Gaussian Splats
  • Pinned commit: The CDK stack pins the upstream repository to a specific commit hash, so every deployment builds from the same upstream sources.
  • Integration: A VAMS-specific entry point (__main__.py, with its vams_utils package) wraps the upstream pipeline with Amazon S3 I/O and AWS Step Functions callback handling.

The sync process clones the upstream repository at the pinned commit and copies the container files into the pipeline directory. The synth verifies that the checked-out commit matches the pinned hash and that the VAMS entry point is staged into the Dockerfile, and fails the deployment if either check does not hold rather than building from stale sources.

The pin covers the upstream commit, not every source the image build fetches

The upstream Dockerfile fetches further third-party sources while the image builds. Most are pinned — cloned and then reset to a recorded commit, or fetched at a version tag — and the rest resolve to whatever the source serves at build time, so two builds of the same pinned commit can produce different images. That set is recorded by URL in dockerfilePinAudit.ts, and the sync compares the synced Dockerfile against the record and fails the deployment's synthesis when it changes in either direction: a source that is newly unpinned, or a recorded one the upstream project has since pinned. The comparison runs only for a deployment that creates this pipeline.

Set useCodeBuild to true to build the image with AWS CodeBuild instead of locally. The deployment then creates an Amazon ECR repository, uploads the container directory as an Amazon S3 source asset, and runs a CodeBuild project (Docker layer caching, privileged mode, in the pipeline VPC) that pushes the image to Amazon ECR; the AWS Batch job definition consumes that image. This avoids building the large CUDA image on the machine running cdk deploy. The build is started by a custom resource and continues after the deployment completes, so check its status before running the pipeline:

aws codebuild list-builds-for-project --project-name <SplatToolboxCodeBuild project>

Left at false, the image is built locally during cdk deploy.

Infrastructure Components​

ResourceServicePurpose
GPU Compute EnvironmentAWS BatchGPU-accelerated container execution
Job QueueAWS BatchJob scheduling with GPU instance selection
Job DefinitionAWS BatchContainer configuration with GPU, memory, and storage settings
Container ImageAmazon ECR3D reconstruction toolbox container
Step Functions State MachineAWS Step FunctionsWorkflow orchestration
Lambda Functions (4)AWS LambdaPipeline coordination (vamsExecute, openPipeline, constructPipeline, pipelineEnd)

How It Works​

  1. A user uploads images (ZIP) or video (MP4/MOV) to VAMS and triggers the Gaussian Splatting workflow.
  2. The vamsExecute Lambda function receives the workflow event and forwards it with all S3 output paths to the constructPipeline Lambda function.
  3. The constructPipeline Lambda function checks for duplicate jobs, then builds a SPLAT stage definition directing output to outputS3AssetFilesPath (asset bucket) and temporary files to inputOutputS3AssetAuxiliaryFilesPath (auxiliary bucket).
  4. AWS Batch submits a GPU job. The container downloads the input, runs the full reconstruction pipeline (SfM + Gaussian Splatting + export), and uploads the resulting PLY/SPZ files to Amazon S3.
  5. AWS Step Functions receives the task token callback, and the pipelineEnd Lambda function finalizes the execution. The process-output step registers the generated 3D files in VAMS.
  6. Users can view the generated Gaussian splat in the VAMS web interface using the built-in splat viewer plugin.

Attribution​

The container image ships the segmentation model weights the optional background-removal and object-removal steps load: the U^2-Net weights (Apache-2.0) as redistributed by backgroundremover (MIT), their ONNX forms and BiRefNet portrait matting (MIT) resolved through rembg (MIT), the SAM 2.1 hiera-large checkpoint (SAM 2, Apache-2.0), and four torchvision checkpoints (BSD-3-Clause). Stable Diffusion XL, used by the default object-erase action, is fetched at run time rather than shipped. See Notices for the full list.
