Project Lakechain

Zip

Unstable API 0.10.0 @project-lakechain/zip-processor TypeScript

The Zip deflate processor makes it easy to package multiple documents into a single compressed Zip archive. This makes it possible to package the result of the processing of specific documents into a single archive ready to be stored, or shared with another system.

🗄️ Deflating Archives

Section titled “🗄️ Deflating Archives”

To use this middleware, you import it in your CDK stack and connect it to a data source that provides documents.

import { ZipDeflateProcessor } from '@project-lakechain/zip-processor';
import { CacheStorage } from '@project-lakechain/core';


class Stack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string) {
    // Sample bucket.
    const bucket = new s3.Bucket(this, 'Bucket', {});


    // The cache storage.
    const cache = new CacheStorage(this, 'Cache');


    // Create the Zip deflate processor.
    const zipProcessor = new ZipDeflateProcessor.Builder()
      .withScope(this)
      .withIdentifier('ZipProcessor')
      .withCacheStorage(cache)
      .withSource(source)
      .build();
  }
}

🏗️ Architecture

Section titled “🏗️ Architecture”

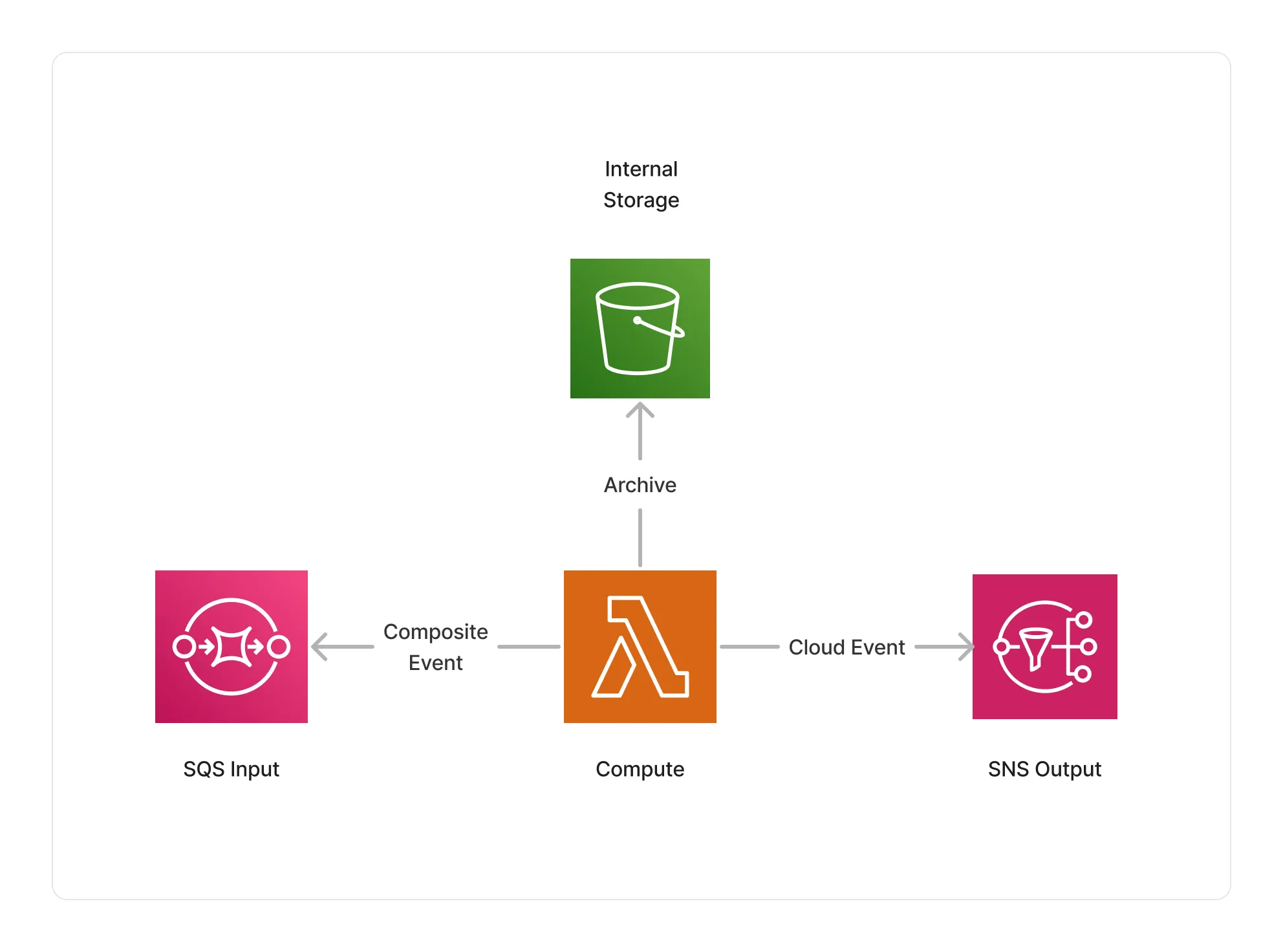

The Zip deflate processor uses AWS Lambda as a compute for creating archives. The compute can run up to 15 minutes to package the files into a compressed archive, and provides the next middlewares in the pipeline with the created Zip archive

Zip Deflate Architecture


🏷️ Properties

Section titled “🏷️ Properties”

Supported Inputs
Section titled “Supported Inputs”
Mime Type Description
*/* This middleware supports any type of documents as an input.
Supported Outputs
Section titled “Supported Outputs”
Mime Type Description
application/zip The Zip deflate processor produces Zip archives.
Supported Compute Types
Section titled “Supported Compute Types”
Type Description
CPU This middleware only supports CPU compute.

📖 Examples

Section titled “📖 Examples”
