@project-lakechain/opensearch-vector-storage-connector

 TypeScript Icon

The OpenSearch vector storage connector enables developers to automatically index document events and their associated vector embeddings into an Amazon OpenSearch Domains domain or an Amazon Serverless Collection.

🗄️ Indexing Documents

Section titled “🗄️ Indexing Documents”

To use the OpenSearch vectors storage connector, you import it in your CDK stack, and connect it to a data source providing document embeddings.

💁 You specify an index definition describing the index that the connector will create in your OpenSearch database to store document events and embeddings.

import { OpenSearchVectorStorageConnector } from '@project-lakechain/opensearch-vector-storage-connector';
import { CacheStorage } from '@project-lakechain/core';


class Stack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string) {
    const cache = new CacheStorage(this, 'Cache');


    // Sample VPC.
    const vpc = new ec2.Vpc(this, 'Vpc');


    // The OpenSearch domain or collection.
    const opensearch = // ...


    // Create the OpenSearch storage connector.
    const connector = new OpenSearchVectorStorageConnector.Builder()
      .withScope(this)
      .withIdentifier('OpenSearchVectorStorageConnector')
      .withCacheStorage(cache)
      .withEndpoint(opensearch)
      .withSource(embeddingProcessor)
      .withVpc(vpc)
      .withIndex(new OpenSearchVectorIndexDefinition.Builder()
        .withIndexName('vector-index')
        .withKnnMethod('hnsw')
        .withKnnEngine('nmslib')
        .withSpaceType('l2')
        .withDimensions(1536)
        .withParameters({ 'ef_construction': 512, 'm': 16 })
        .build()
      )
      .build();
  }
}

Index Definition

Section titled “Index Definition”

The index definition allows you to configure the index attributes that will be used by the connector. Below is a description of the attributes that can be configured.

Attribute Description
indexName The name of the index to create.
knnMethod The KNN method (only hnsw is currently supported).
knnEngine The KNN engine (faiss or nmslib).
spaceType The space type (l2, l1, innerproduct, cosinesimil, linf).
dimensions The number of dimensions of the vectors.
parameters The parameters for the index.

🌐 Endpoints

Section titled “🌐 Endpoints”

This middleware supports instances of IDomain, ICollection or an Amazon Serverless CfnCollection that you can pass to the withEndpoint method.


🏗️ Architecture

Section titled “🏗️ Architecture”

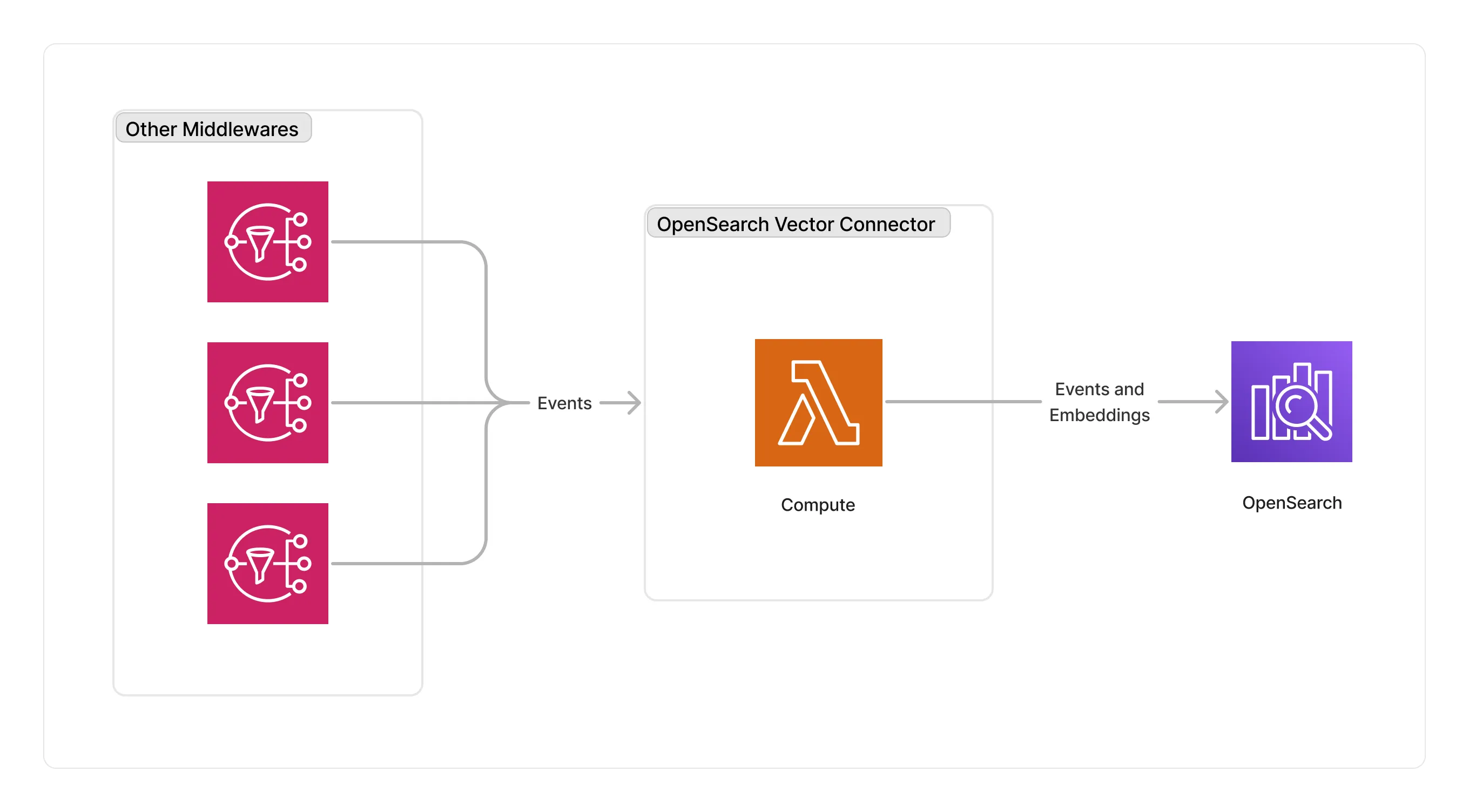

THis middleware uses a Lambda function to index documents in batches into an OpenSearch domain or OpenSearch Serverless collection.

💁 By default, this connector uses a batch of 10 documents and batches documents for a period of 20 seconds.

OpenSearch Vector Storage Connector Architecture


🏷️ Properties

Section titled “🏷️ Properties”

Supported Inputs
Section titled “Supported Inputs”
Mime Type Description
*/* This middleware supports any type of documents. Note that if no embeddings are specified in the document metadata, the document is filtered out.
Supported Outputs
Section titled “Supported Outputs”

This middleware does not produce any output.

Supported Compute Types
Section titled “Supported Compute Types”
Type Description
CPU This middleware only supports CPU compute.
