Project Lakechain

Email

Unstable API 0.10.0 @project-lakechain/email-text-processor TypeScript

The e-mail text processor makes it easy to extract the textual content of e-mail documents and pipe it to other middlewares for further processing. This middleware can extract text, HTML, and structured JSON from e-mail documents. It also optionally supports the extraction of attachments and forwarding them as new documents to other middlewares.

📨 Parsing E-mails

Section titled “📨 Parsing E-mails”

To use this middleware, you import it in your CDK stack and instantiate it as part of a pipeline.

import { EmailTextProcessor } from '@project-lakechain/email-text-processor';
import { CacheStorage } from '@project-lakechain/core';


class Stack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string) {
    // The cache storage.
    const cache = new CacheStorage(this, 'Cache');


    // Create the e-mail text processor.
    const emailProcessor = new EmailTextProcessor.Builder()
      .withScope(this)
      .withIdentifier('EmailProcessor')
      .withCacheStorage(cache)
      .withSource(source) // 👈 Specify a data source
      .build();
  }
}

Output Formats

Section titled “Output Formats”

The e-mail text processor can extract the following formats from e-mail documents:

  • text: Extracts only the textual body of the e-mail.
  • html: Extracts the body of the e-mail as HTML.
  • json: Extracts the body and the attributes of the e-mail as JSON.

💁 You can specify the output format by using the withOutputFormat method. By default, the output format is text.

const emailProcessor = new EmailTextProcessor.Builder()
  .withScope(this)
  .withIdentifier('EmailProcessor')
  .withCacheStorage(cache)
  .withSource(source)
  .withOutputFormat('html') // 👈 Specify the output format
  .build();

Include Attachments

Section titled “Include Attachments”

The e-mail text processor can optionally extract attachments from e-mail documents and forward them as new documents to other middlewares. You can enable the processing of attachments using the .withIncludeAttachments API.

const emailProcessor = new EmailTextProcessor.Builder()
  .withScope(this)
  .withIdentifier('EmailProcessor')
  .withCacheStorage(cache)
  .withSource(source)
  .withIncludeAttachments(true) // 👈 Enable the processing of attachments
  .build();

Section titled “Include Image Links”

This middleware supports converting CID attachments to data URL images. You can enable this feature using the .withIncludeImageLinks API.

const emailProcessor = new EmailTextProcessor.Builder()
  .withScope(this)
  .withIdentifier('EmailProcessor')
  .withCacheStorage(cache)
  .withSource(source)
  .withIncludeImageLinks(true) // 👈 Enable the processing of image links
  .build();

📄 Metadata

Section titled “📄 Metadata”

The e-mail text processor transforms input e-mail documents in the desired output format. It also enriches the metadata of documents with different information. Below is an example of the metadata created by this middleware.

💁 Click to expand example
{
  "specversion": "1.0",
  "id": "1780d5de-fd6f-4530-98d7-82ebee85ea39",
  "type": "document-created",
  "time": "2023-10-22T13:19:10.657Z",
  "data": {
    "chainId": "6ebf76e4-f70c-440c-98f9-3e3e7eb34c79",
    "source": {
        "url": "s3://bucket/email.eml",
        "type": "message/rfc822",
        "size": 24532,
        "etag": "1243cbd6cf145453c8b5519a2ada4779"
    },
    "document": {
        "url": "s3://bucket/email.txt",
        "type": "text/plain",
        "size": 125,
        "etag": "1243cbd6cf145453c8b5519a2ada4779"
    },
    "metadata": {
      "title": "Re: Hello World",
      "createdAt": "2023-10-22T13:19:10.657Z",
      "authors": [
        "John Doe"
      ],
      "properties": {
        "kind": "text",
        "attrs": {}
      }
    },
    "callStack": []
  }
}

🏗️ Architecture

Section titled “🏗️ Architecture”

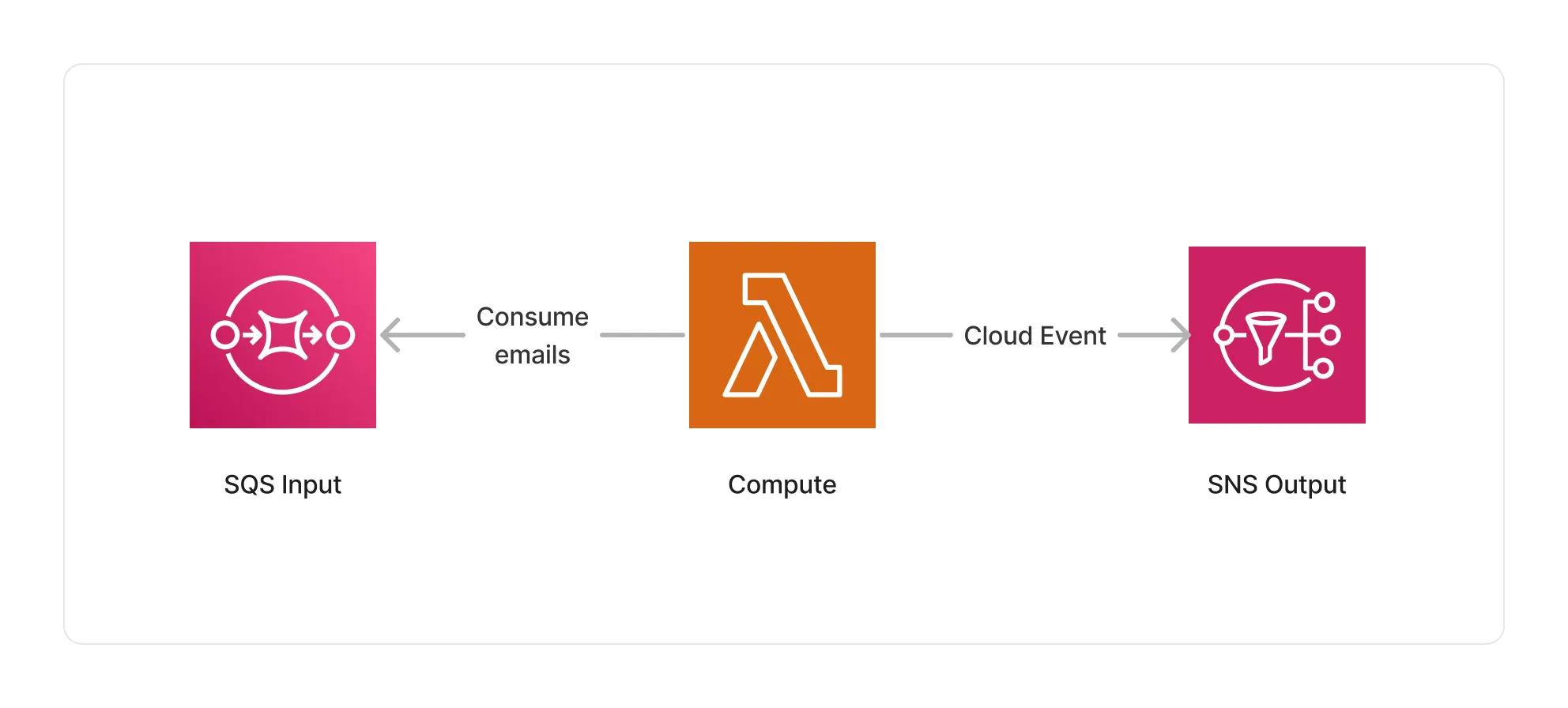

This middleware is based on a Lambda ARM64 compute, and packages the mailparser library to parse e-mail documents.

Architecture


🏷️ Properties

Section titled “🏷️ Properties”

Supported Inputs
Section titled “Supported Inputs”
Mime Type Description
message/rfc822 E-mail documents.
application/vnd.ms-outlook Outlook e-mail documents.
Supported Outputs
Section titled “Supported Outputs”

The supported output types for this middleware consist of a variant that depends on whether or not the inclusion of attachments is enabled. If attachments are included, the output type is */* as attachments can consist of any type, otherwise the output type is associated with the defined output format.

Output Format With Attachment Mime Type Description
text No text/plain Plain text document.
text Yes */* Any document.
html No text/html HTML document.
html Yes */* Any document.
json No application/json JSON document.
json Yes */* Any document.
Supported Compute Types
Section titled “Supported Compute Types”
Type Description
CPU This middleware only supports CPU compute.

📖 Examples

Section titled “📖 Examples”
