SQS Connector

Unstable API 0.10.0 @project-lakechain/sqs-storage-connector

The SQS storage connector makes it possible to capture the result of one or multiple middlewares in a pipeline and store their results in a user-defined SQS queue. This connector allows to nicely decouple the processing of your documents with third-party applications that can consume processed documents from a queue.

💁 This connector only forwards the CloudEvents emitted by middlewares to the SQS queue, and not the documents themselves.

🕒 Enqueue Documents

To use the SQS storage connector, you import it in your CDK stack, and connect it to a data source providing documents.

import { SqsStorageConnector } from '@project-lakechain/sqs-storage-connector';
import { CacheStorage } from '@project-lakechain/core';

class Stack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string) {
    // The cache storage.
    const cache = new CacheStorage(this, 'Cache');

    // The destination queue.
    const queue = // ...

    // Create the SQS storage connector.
    const connector = new SqsStorageConnector.Builder()
      .withScope(this)
      .withIdentifier('SqsStorageConnector')
      .withCacheStorage(cache)
      .withSource(source) // 👈 Specify a data source
      .withDestinationQueue(queue)
      .build();
  }
}

🏗️ Architecture

This middleware makes use of the native integration between the SNS output topics of source middlewares with SQS to forward messages to a destination queue, without relying on any additional compute resources.

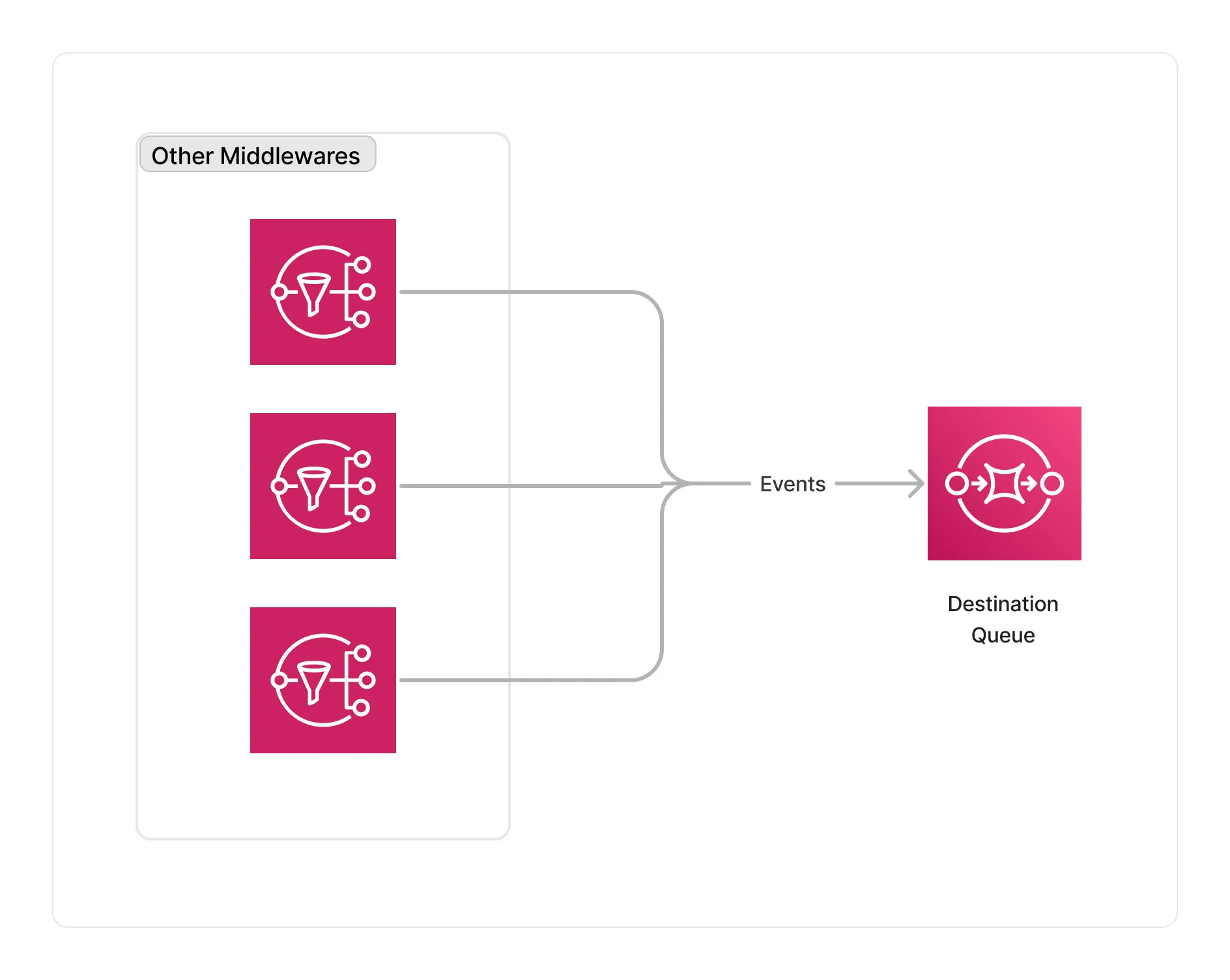

SQS Storage Connector Architecture

🏷️ Properties

Supported Inputs

Mime Type	Description
`/`	This middleware supports any type of documents.

Supported Outputs

This middleware does not emit any output.

Supported Compute Types

Type	Description
`CPU`	This middleware only supports CPU compute.

📖 Examples

Storage Connector Pipeline - Builds a pipeline connected to other AWS services.
