Project Lakechain

Pandoc

Unstable API 0.10.0 @project-lakechain/pandoc-text-converter TypeScript

The Pandoc middleware converts at scale documents from a matrix of multiple formats using the Pandoc project. You can for example convert HTML, Docx, or Markdown documents into plain text to be able to run NLP analysis, or convert Markdown documents into PDF documents for creating nice-looking reports.

🔁 Converting Documents

Section titled “🔁 Converting Documents”

To use this middleware, you import it in your CDK stack and instantiate it as part of a pipeline.

💁 The below example takes supported input document types uploaded into a source S3 bucket, and converts them to plain text.

import { S3EventTrigger } from '@project-lakechain/s3-event-trigger';
import { PandocTextConverter } from '@project-lakechain/pandoc-text-converter';
import { CacheStorage } from '@project-lakechain/core';


class Stack extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string) {
    // The cache storage.
    const cache = new CacheStorage(this, 'Cache');


    // Create the S3 event trigger.
    const trigger = new S3EventTrigger.Builder()
      .withScope(this)
      .withIdentifier('Trigger')
      .withCacheStorage(cache)
      .withBucket(bucket)
      .build();


    // Convert uploaded documents to plain text.
    trigger.pipe(new PandocTextConverter.Builder()
      .withScope(this)
      .withIdentifier('PandocTextConverter')
      .withCacheStorage(cache)
      .withSource(trigger)
      .build());
  }
}

Conversion Matrix

Section titled “Conversion Matrix”

By default, the Pandoc text converter will convert supported input documents to plain text. You can however explicitly specify a conversion matrix describing which inputs to converts into which outputs.

💁 The below example demonstrates how to convert Docx documents to both plain text and PDF, and Markdown documents to HTML.

import { PandocTextConverter, from } from '@project-lakechain/pandoc-text-converter';


const pandoc = new PandocTextConverter.Builder()
  .withScope(this)
  .withIdentifier('PandocTextConverter')
  .withCacheStorage(cache)
  .withSource(trigger)
  .withConversions(
    from('docx').to('plain', 'pdf'),
    from('md').to('html')
  )
  .build();

🏗️ Architecture

Section titled “🏗️ Architecture”

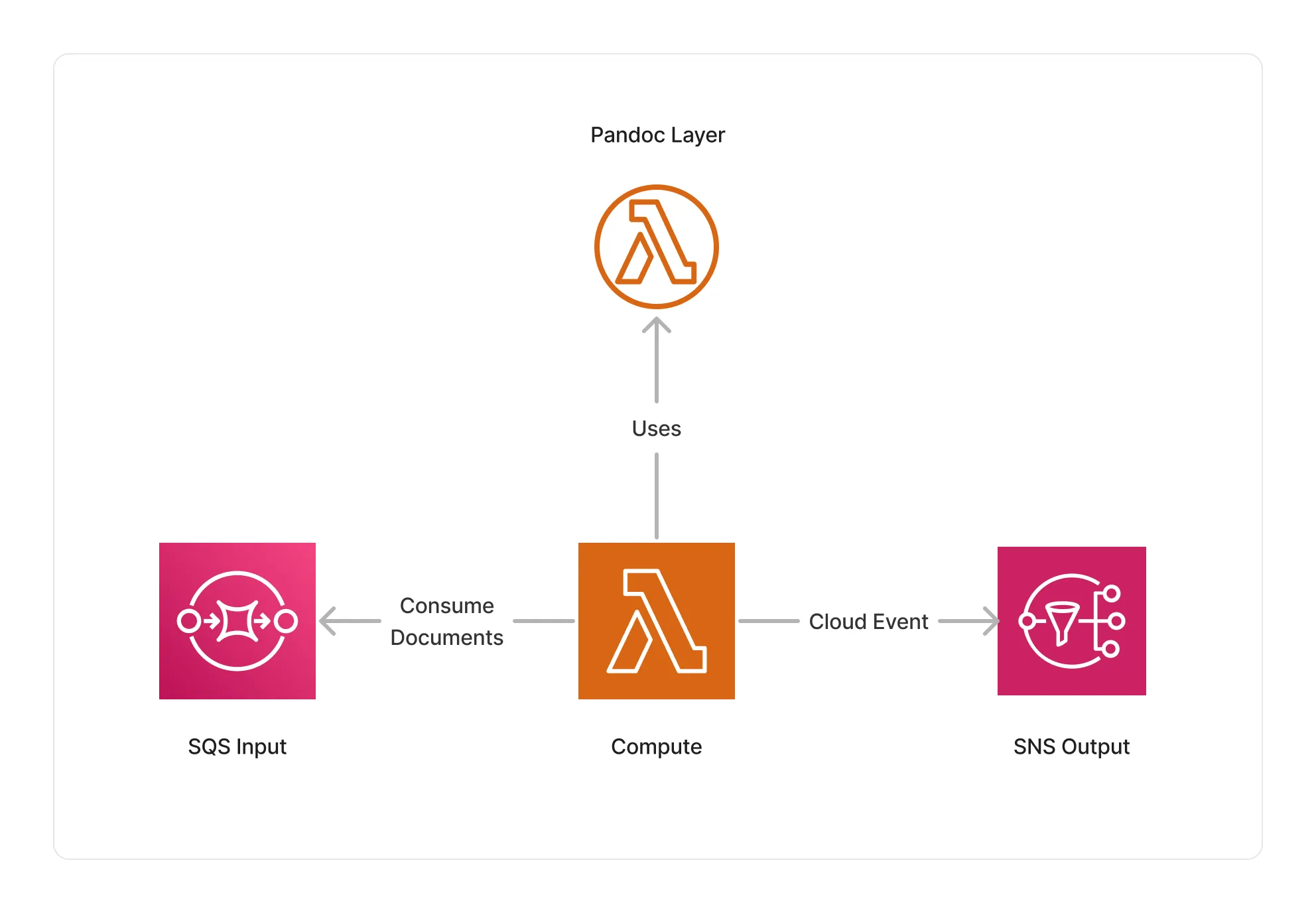

This middleware is based on a Python Lambda compute running the Pandoc project using the pypandoc library packaged as a Lambda layer.

Pandoc Architecture


🏷️ Properties

Section titled “🏷️ Properties”

Supported Inputs
Section titled “Supported Inputs”
Mime Type Description
application/epub+zip EPUB documents.
text/csv CSV documents.
text/tab-separated-values TSV documents.
application/vnd.openxmlformats-officedocument.wordprocessingml.document Word documents.
text/markdown Markdown documents.
text/html HTML documents.
application/vnd.oasis.opendocument.text OpenOffice documents.
application/rtf RTF documents.
application/x-tex LaTeX documents.
text/x-rst RST documents.
text/x-textile Textile documents.
application/x-ipynb+json Jupyter Notebook documents.
text/troff Manual documents.
application/x-bibtex BibTex documents.
application/docbook+xml Docbook documents.
application/x-fictionbook+xml FictionBook documents.
text/x-opml OPML documents.
application/x-texinfo Texinfo documents.
Supported Outputs
Section titled “Supported Outputs”
Mime Type Description
text/x-asciidoc Asciidoc documents.
application/x-bibtex BibTex documents.
application/docbook+xml Docbook documents.
application/vnd.openxmlformats-officedocument.wordprocessingml.document Word documents.
application/epub+zip EPUB documents.
application/x-fictionbook+xml FictionBook documents.
text/x-haskell Haskell documents.
text/html HTML documents.
application/xml XML documents.
application/x-ipynb+json Jupyter Notebook documents.
application/json JSON documents.
application/x-tex LaTeX documents.
text/troff Manual documents.
text/markdown Markdown documents.
text/plain Plain text documents.
application/vnd.oasis.opendocument.text OpenOffice documents.
text/x-opml OPML documents.
application/pdf PDF documents.
application/vnd.openxmlformats-officedocument.presentationml.presentation PowerPoint documents.
text/x-rst RST documents.
application/rtf RTF documents.
application/x-texinfo Texinfo documents.
text/x-textile Textile documents.
Supported Compute Types
Section titled “Supported Compute Types”
Type Description
CPU This middleware only supports CPU compute.
